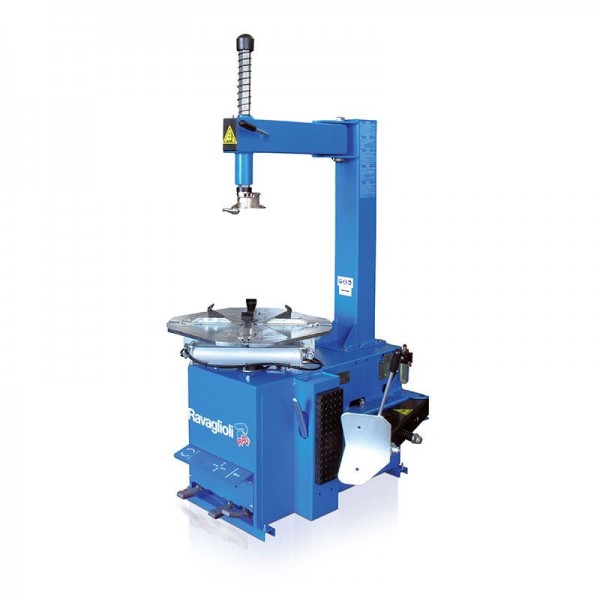

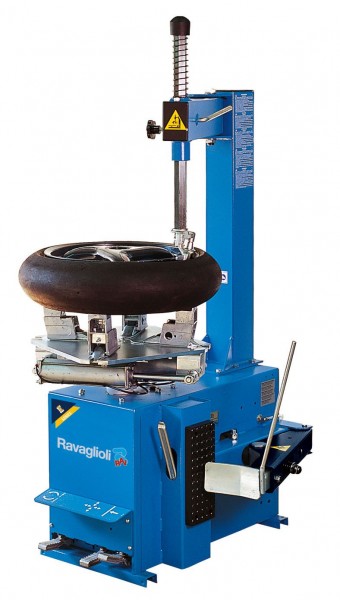

Features of the mid size G7240.22 Swing Arm tire changer include:
-
Optimized construction to obtain the best price/performance ratio.
-

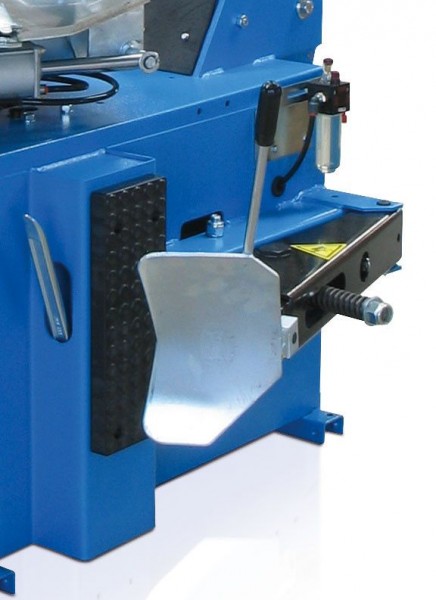

Bead breaker has a galvanized cylinder with double acting operation.
-

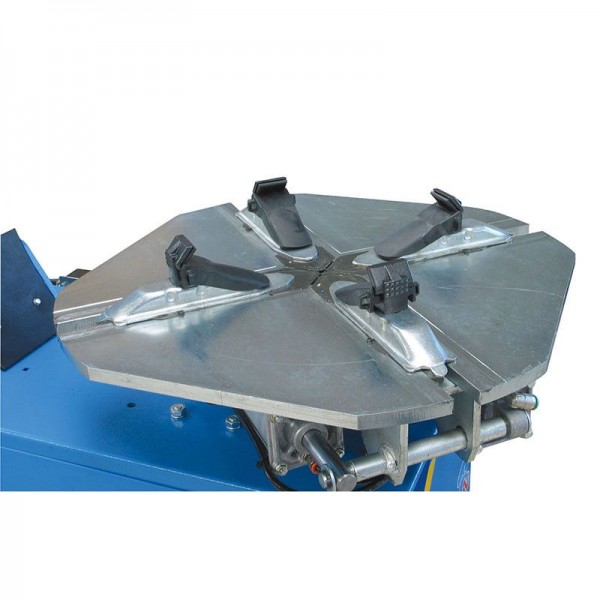

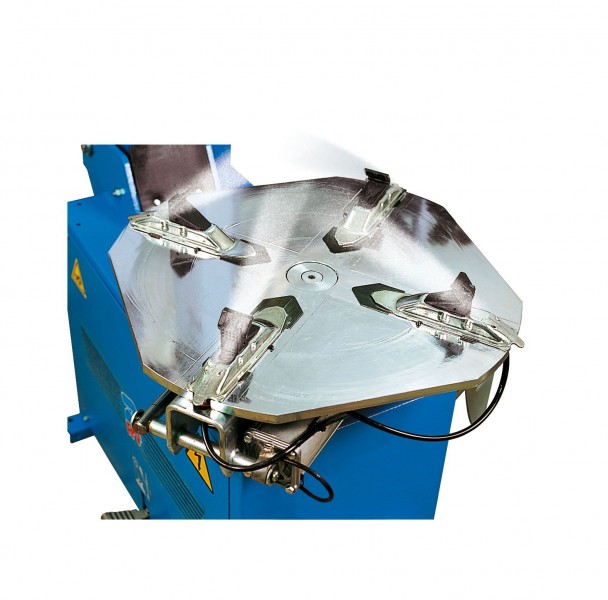

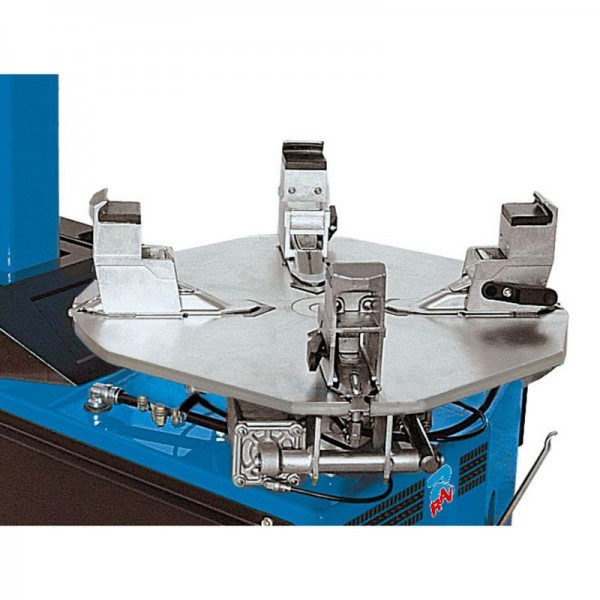

Rigid self-centering clamping jaws with a wide clamping range.

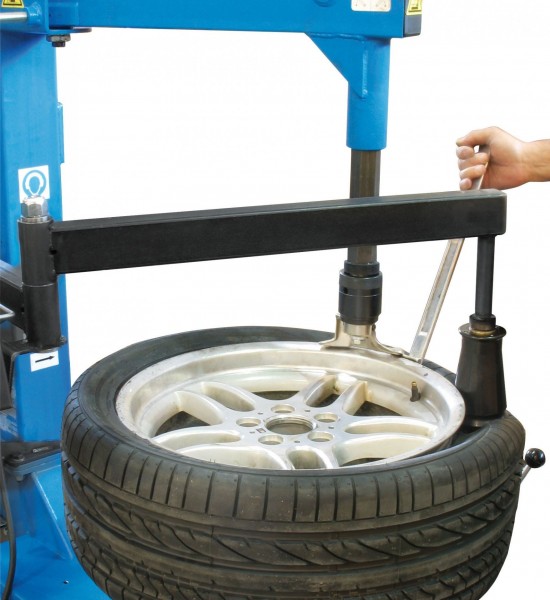

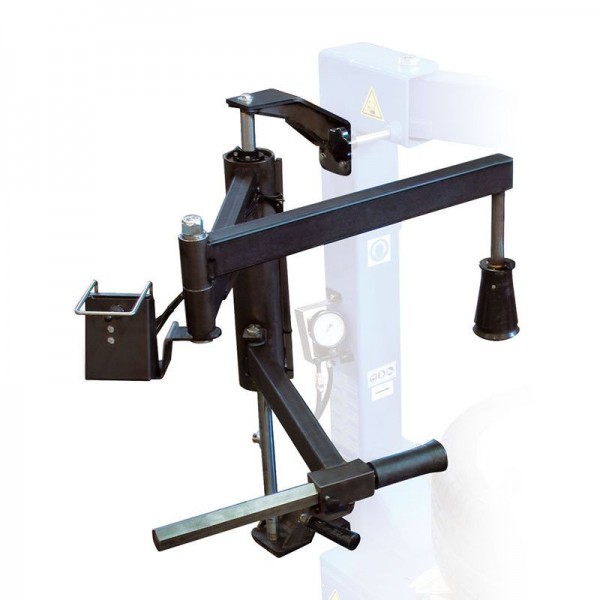

- Add our PLUS Arm 91N for and additional $1,566 for one-man operation of low profile and run-flat tire applications.
- 110V electric motor
Specifications
| External Clamping |
10" - 22"
|
| Internal Clamping |
12" - 24"
|
| Max. Tire Diameter |
40" (1000mm)
|
| Max. Rim Width |
12" (305 mm)
|
| Max Bread Breaker Opening |
12" (305 mm)
|
| Bead Breaker Cylinder Power at 175 PSI |
8000 LBS (3600 kg)
|
| Motor |
110V 1 hp
|
| Turntable Rotation Speed |
9 rpm
|
| Max. Torque to Turntable |
1200 / 900 Nm
|
| Shipping Weight |
430 lbs
|
