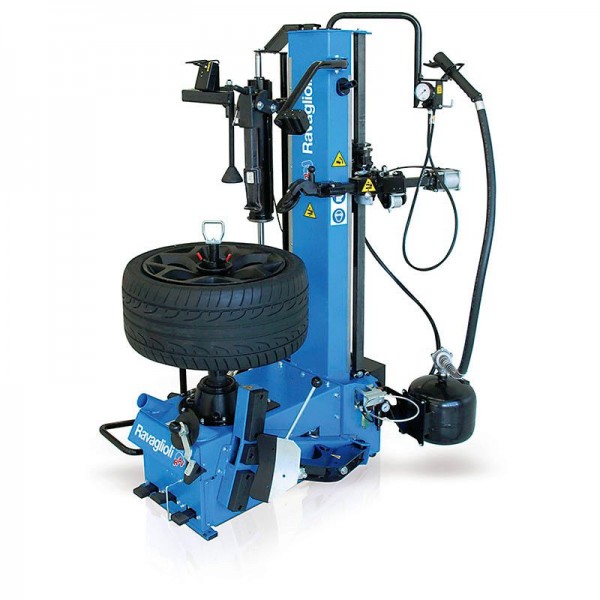

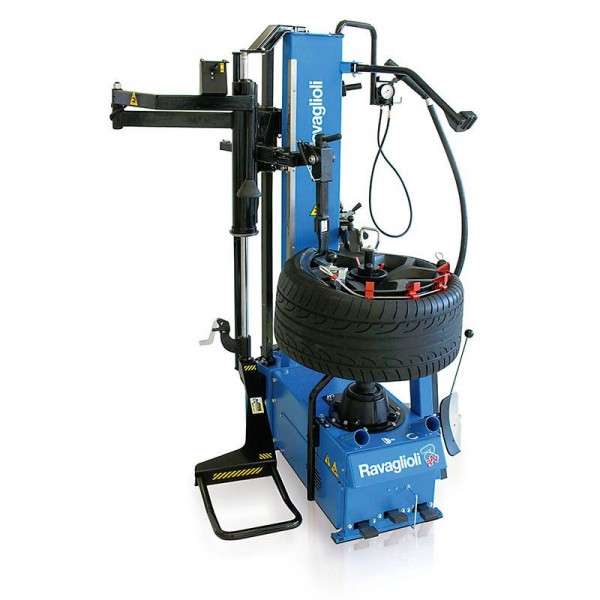

G1150.30 RAV MAGIC LEVERLESS Tire Changer
Probably the most advanced automotive tire changer on the market today. There is no need for a tire iron, metal on metal contact is eliminated which avoids damage to expensive rims. Other features of the RAVAVGLIOLI MAGIC TIRE CHANGER include:
Completely Leverless:
The real no lever tire changer - never use a tire iron again!

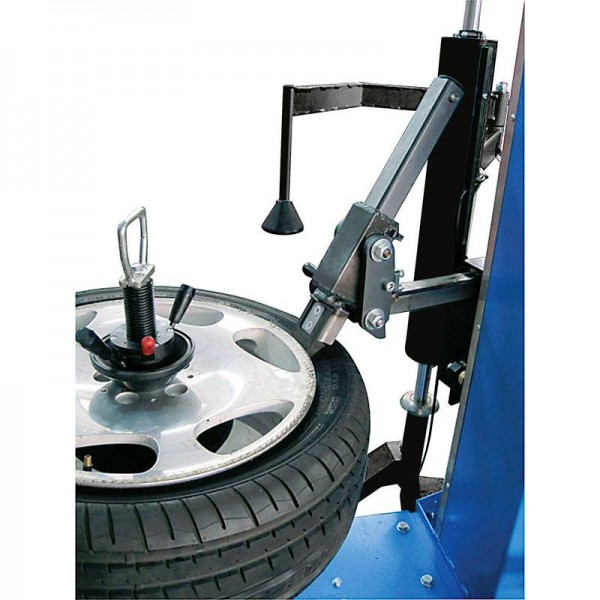

ROBOTOOL:

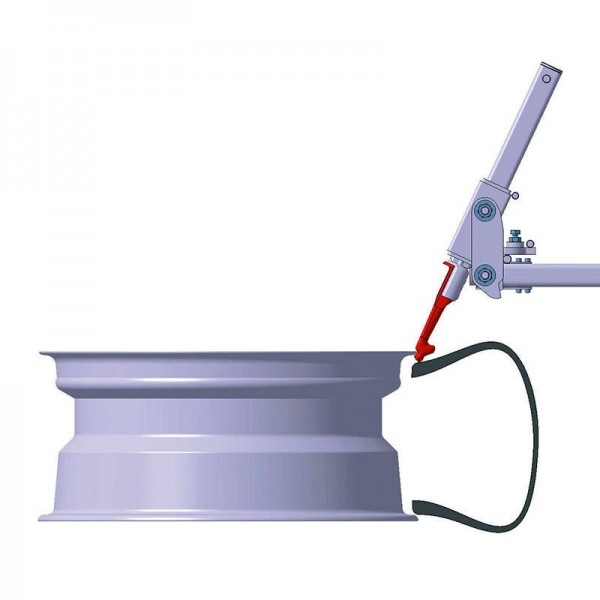

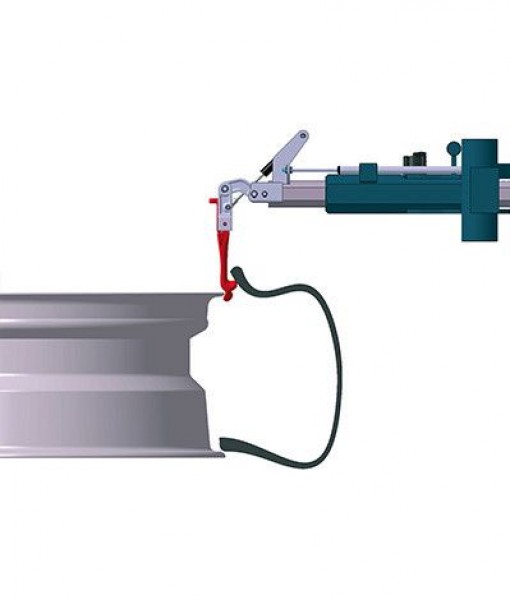

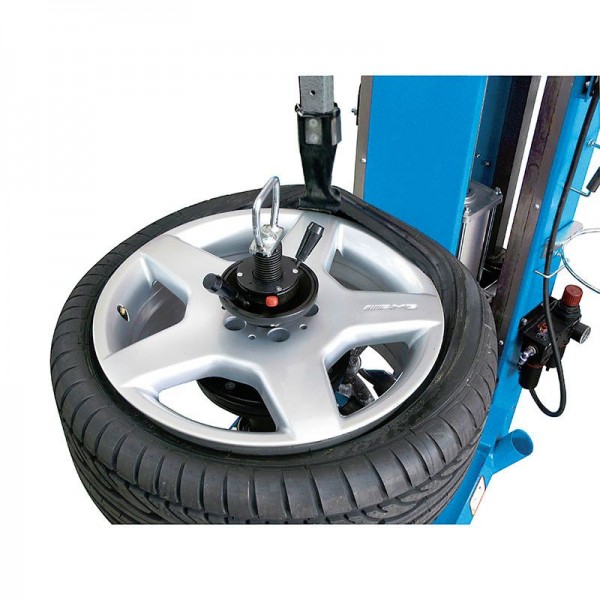

The unique and patented ROBOTOOL operates between the rim and tire, then levering on the rim progressively pulls up the bead, minimizing stress on the tire.
AUTO-TOUCH Function: Combines Easy Controls, ROBOTOOL and Easy Roller to make changing any tire easy.

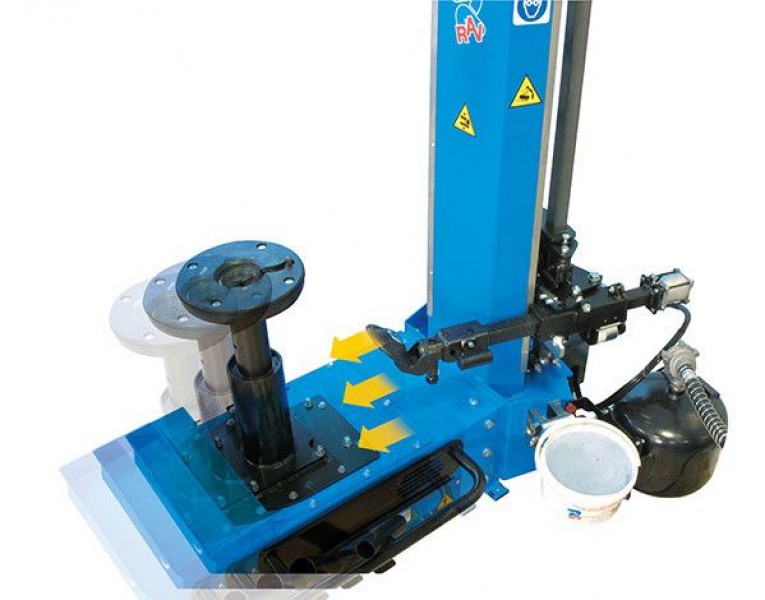

Adjustable Locking Table:
Ability to extend the working range of the locking table up to 30”.
Variable Speed INVEMOTOR: Allows the operator to control rotation speed of the clamping table with simple to operate foot pedal. Variable speed from 0 to 16 RPM offers the best possible control.
|
Technical Data
|
G1150.30 Magic
|
| Handles Wheels from |
10" to 30"
|
| Max Wheel Weight |
15"
|
| Max Wheel Diameter |
45"
|

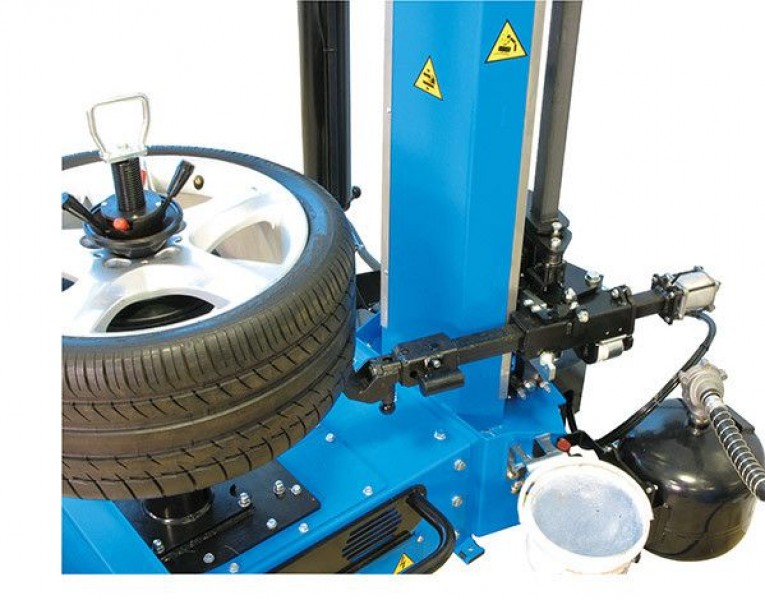

| Bead Breaker Roller Power (Either Direction) |
2645 lbs
|
| Bead Breaker Roller Movement |
Automatic
|
| Rotation Motor 0 to 16 RPM/min |
Variable Speed 1.5 kw Invemotor
|
| Recommended Air Supply |
8-10 bar
|
| Power Supply |
220V 1 ph, (200/265v, 50/60HZ)
|
| Shipping Weight |
745 lbs (338 kg)
|
