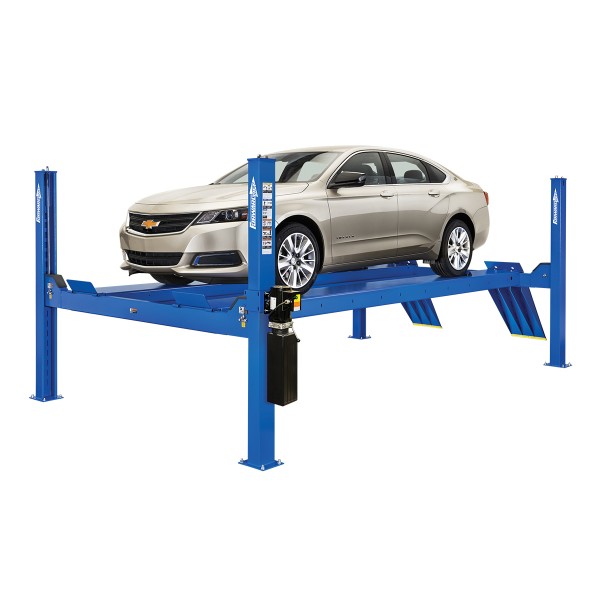

Capacity: 14,000 lbs.
Specifications
Specifications | CR14N201Y | Differences | CR14N202Y EXTRA LONG |
---|---|---|---|
Capacity | 14,000 lbs. (6350kg) | 14,000 lbs. (6350kg) | |
Rise | 78-3/4″ (2000mm) | 78-3/4″ (2000mm) | |

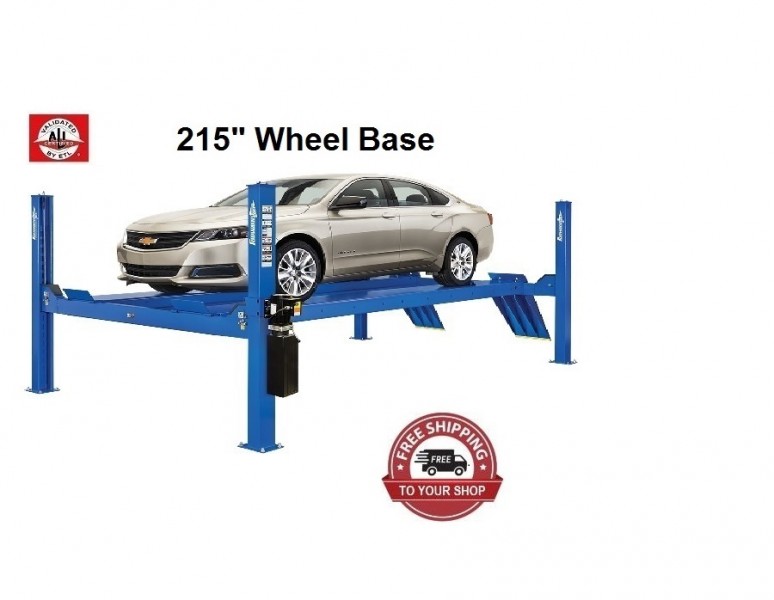

Maximum Wheelbase | 182-1/2″ (4635mm) | <32-1/2 “> | 215″ (5460mm) |
Overall Length | 250″ (6350mm) | <33 “> | 283″ (7188mm) |
Overall Width | 131-3/4″ (3568mm) | 131-3/4″ (3568mm) | |
Width Inside Columns | 116-1/4″ (2953mm) | 116-1/4″ (2953mm) | |
Length Between Columns | 195-1/4″ (4946mm) | <33 “> | 228-1/4″ (4946mm) |
Overall Height | 90-1/2″ (2299mm) | 90-1/2″ (2299mm) | |
Runway Width | 20″ (508mm) | 20″ (508mm) | |
Runway Height | 7″ (178mm) | 7″ (178mm) | |
Width Between Runways | 43″ (1092mm) or 46″ (1168mm) | 43″ (1092mm) or 46″ (1168mm) | |
Rise Time | 72 seconds | 72 seconds | |
Voltage* | 208/230v | 208/230v | |
Motor | 2HP | 2HP | |
Minimum Bay Size | 15′ x 25′ (4572 x 7620mm) | <36 “> | 15′ x 28′ (4572 x 8534mm) |
* single phase standard; 3-phase available at additional cost |
4 Post Lift Accessories
Efficiency kit for CR14/CRO14: 2 Rolling Jacks and internal Air line kit |
S100183 |
$6,499 | |

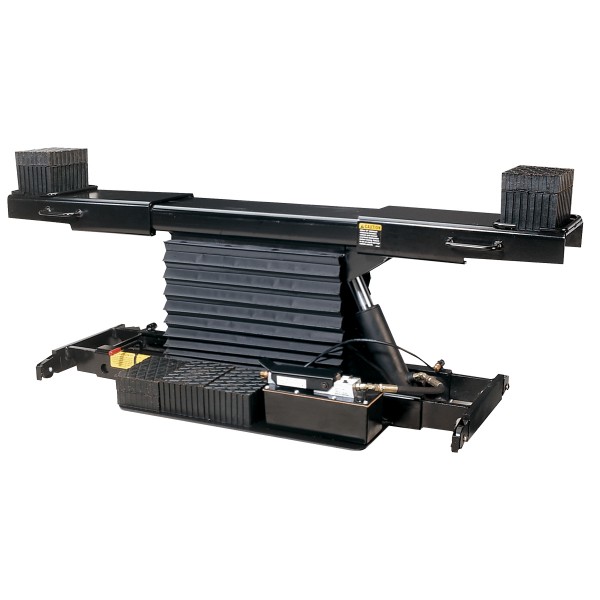

Rolling Jack |
RRJ70GBK | $3,004 | |
Bolt-on alignment kit |
S100137M | $3,503 | |
Standard Turntables |
TT1000 | $435 | |
Stainless Steel Turntables |
TT1001 | $1,885 | |
Inline air kit |
FC5760-14 | $492 |
|
Light Kit |
FA5700 | $932 | |
Oil drain pan |
FC5967 30 gallon |
$1,025 | |
Drive-on Ramps |
S100150Y | $693 |
Standard lift colors include blue and red.
