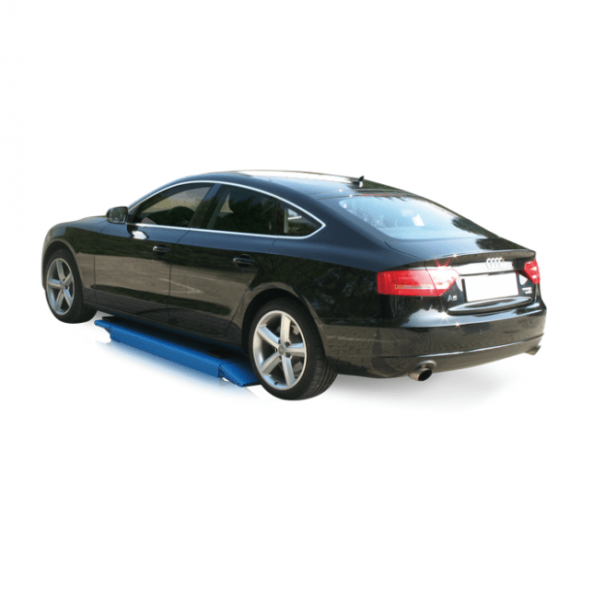

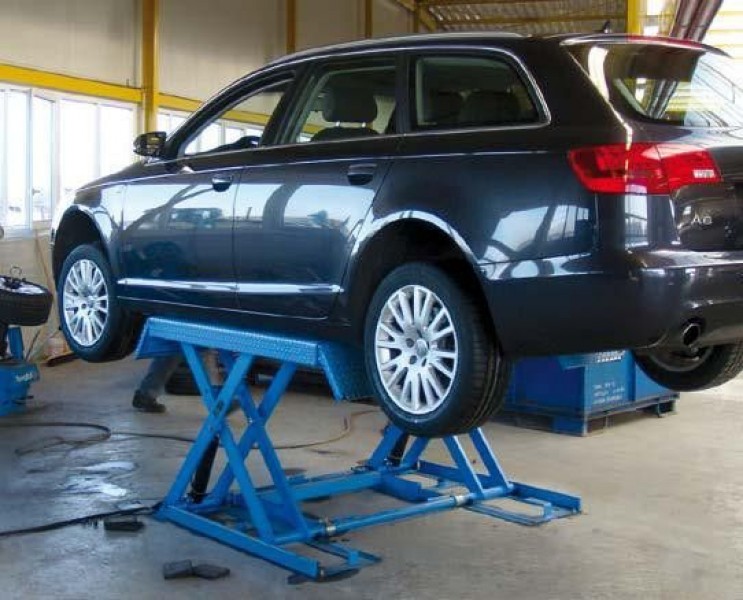

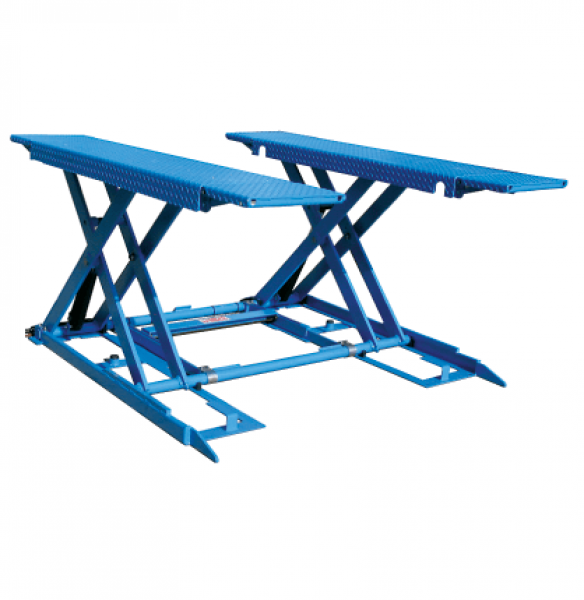

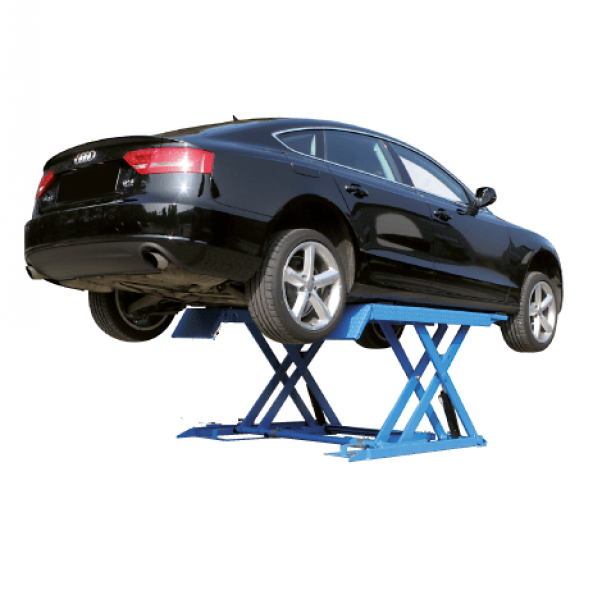

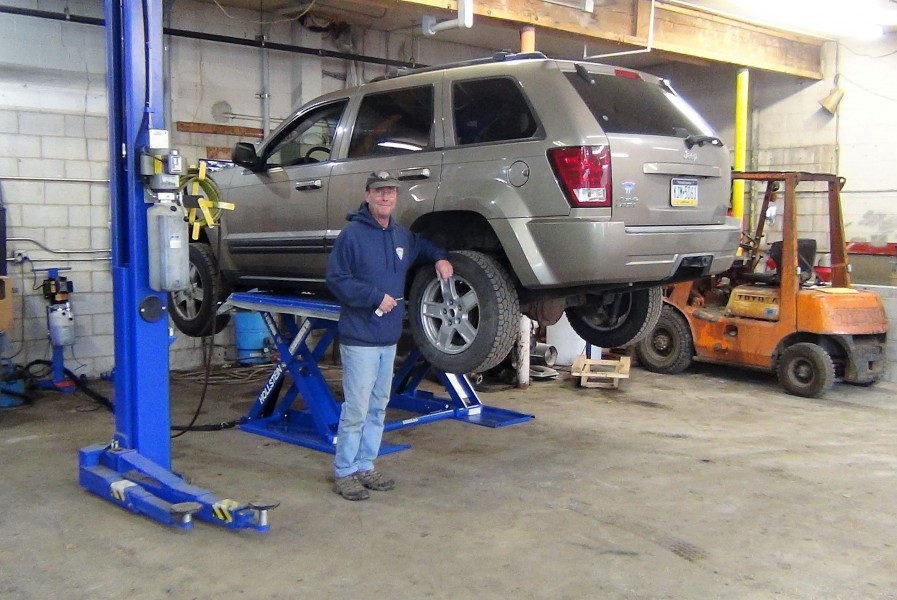

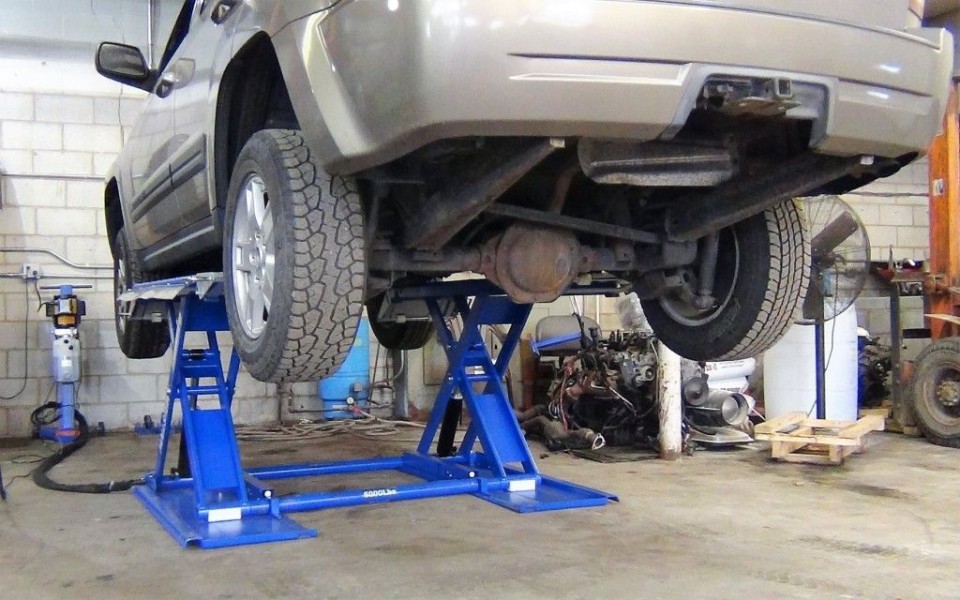

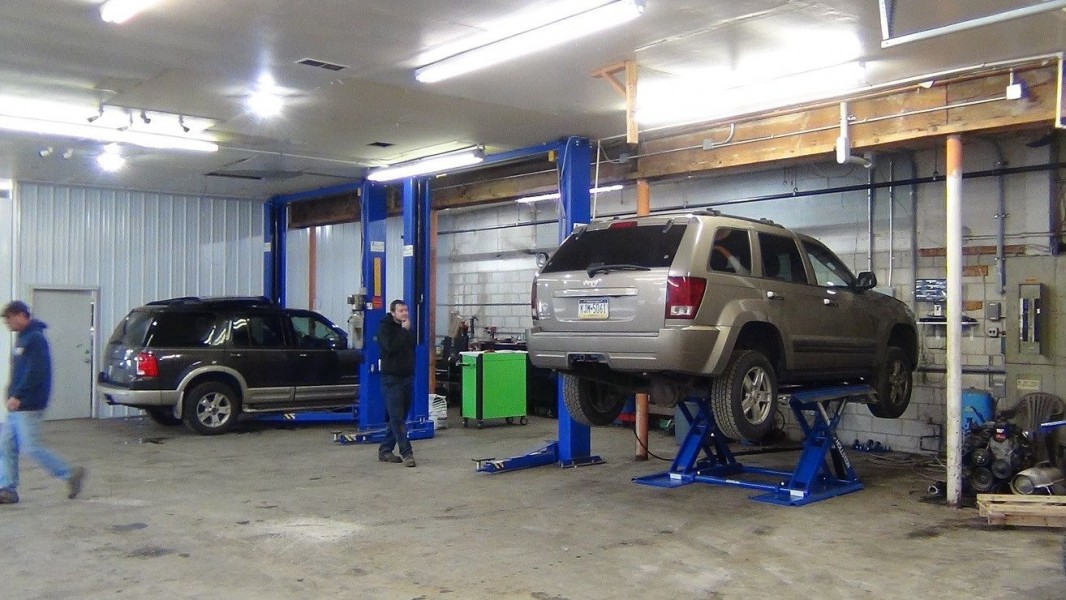

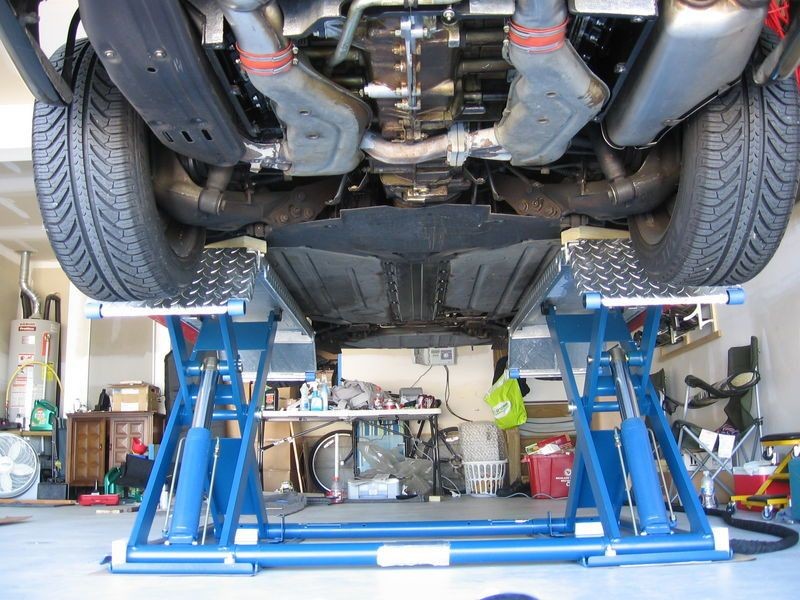

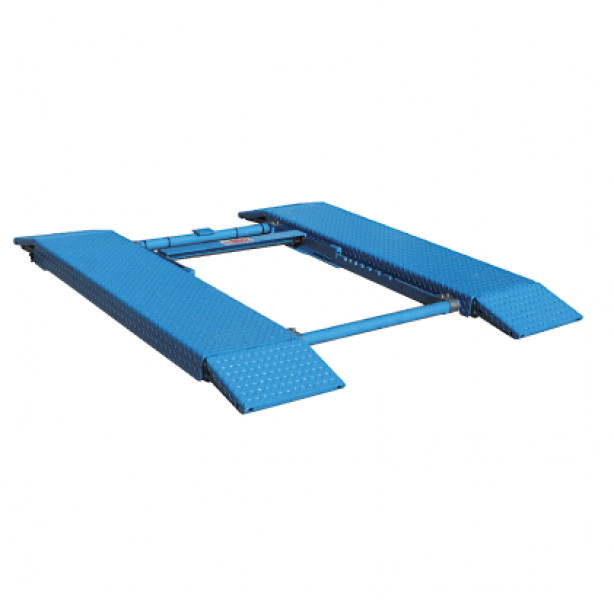

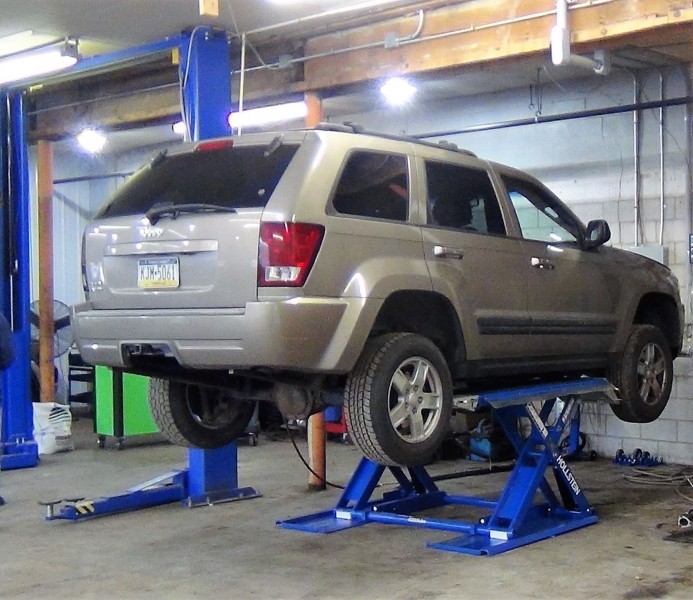

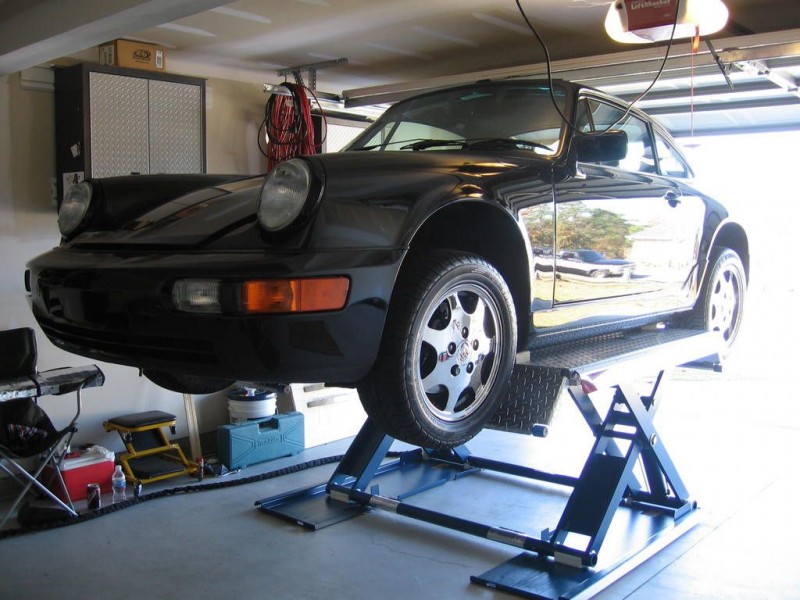

The HOLLSTEIN Open-Center Midrise Scissors Platform Lift with 38" rise is the strongest and most stable lift with 6,500 lb capacity when it comes to portable mid-rise lifts. The lifting height can be increased with the addition of our optional 4" height adapters to achieve up to 42" of working height. When fully lowered the lift offers the lowest drive-over height of 4" in it's class. Therefore no damage will occur to under-car components such as spoilers, exhausts with converters, suspension components, plastic rocker panel covers and so on. The OPEN CENTER platform design offers fast set up without the need to position lift arms and adapters. ( There are no lift pads or adapters to be reached for from under the vehicle.) It overs great access to under-car service and repair due to the 2 platforms being 33" apart. Dual hydraulic lifting cylinders and air operated safety locks make this lift a reliable and safe work horse. Even a low ceiling garage with 9' or 10' ceiling height lets you lift a car or truck to a comfortable working height.

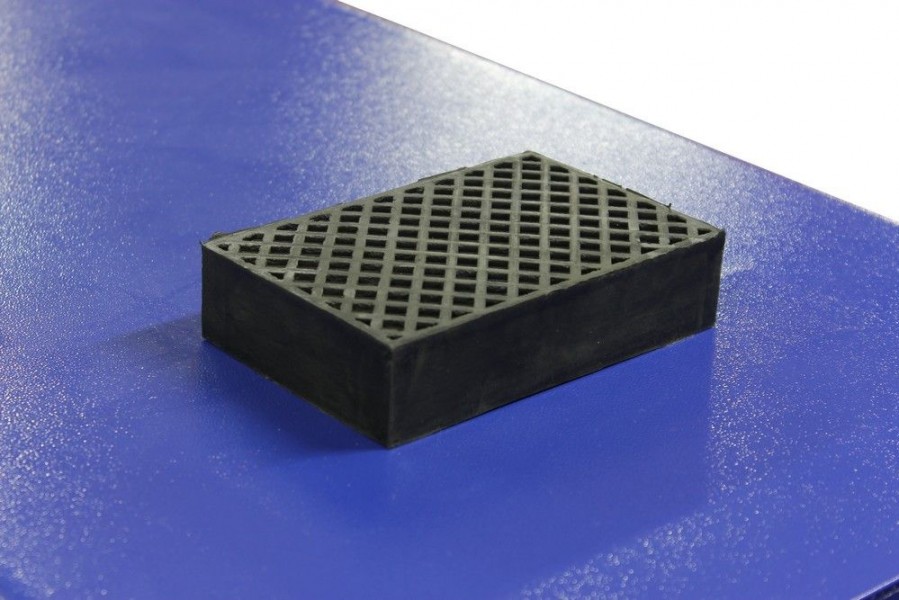

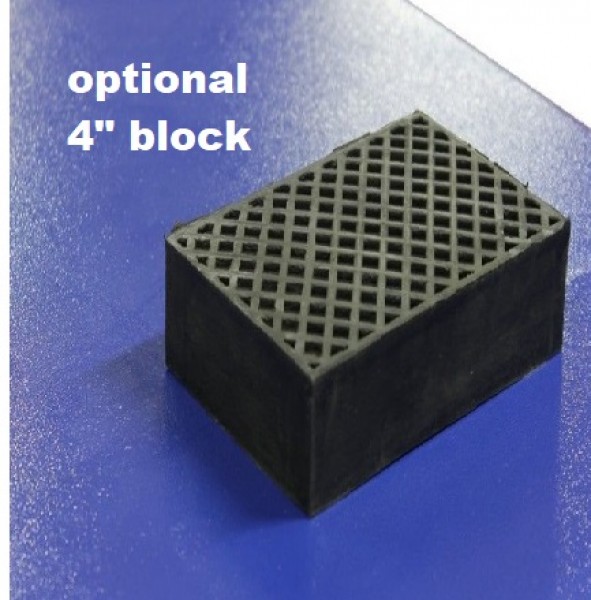

Optional 4" rubber block/height adapters now available.

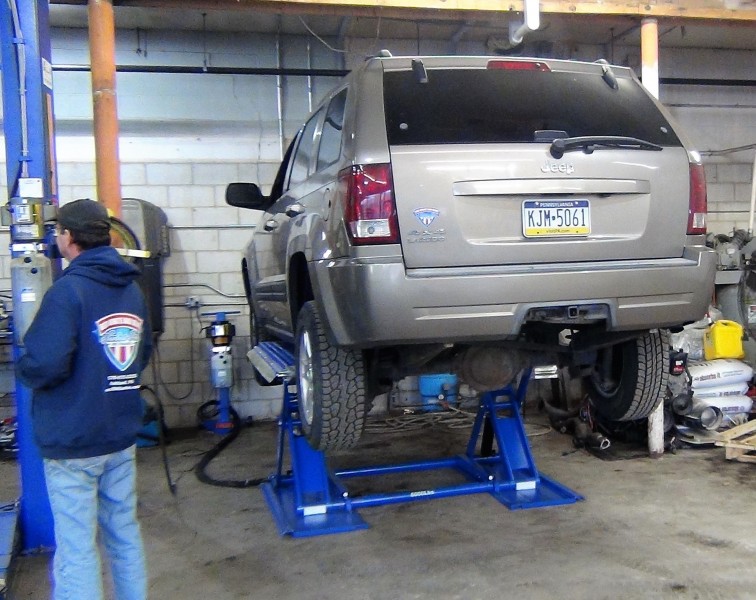

- This PORTABLE Lift is perfect for servicing Tires, Brakes, Suspension, Bodywork and more
- 110V Electro-hydraulic operation
- High load capacity and 38" lifting height to the top of the platform
- Quick cycle time for up and down movement.
- Practical and easy to use
- Maximum safety built-in, mechanical safety locks keep lift raised and locked even for longer periods of time
- Mechanical leveling system assures constant leveling of the lifting platforms regardless of weight distribution
-
Watch a short VIDEO on FACEBOOK
HOLLSTEIN Midrise Lift, 38" Rise
- 6,500 Lbs lifting capacity
- Four rubber blocks are placed on the lift platforms to pick-up at the manufacturers designated vehicle contact points
- Automatically engaging double safety lock system with air release
- 38" height to top of platform, working height can be increased by adding blocks at vehicles pick up points
- 4" drive-over height
- Low maintenance, all pivot points use self lubricating bushings for long life cycle

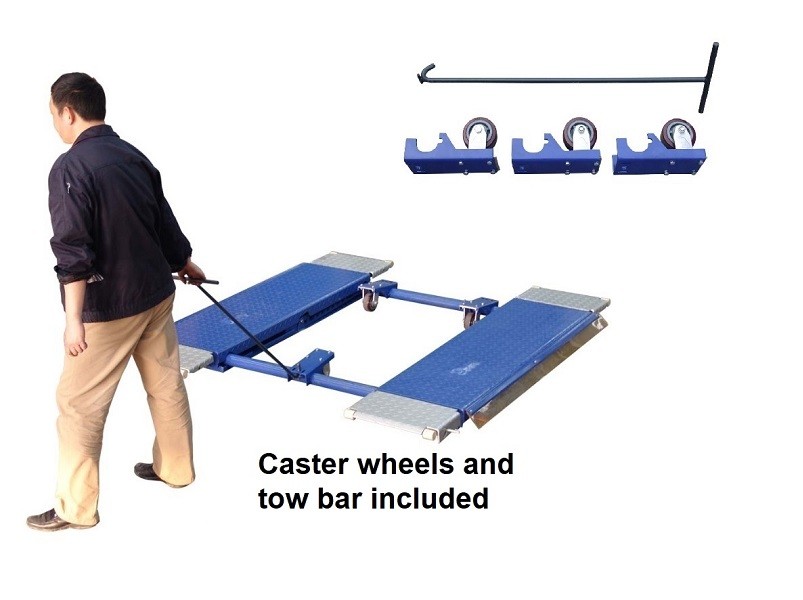

- Wheel kit, tow bar and rubber pads/blocks standard

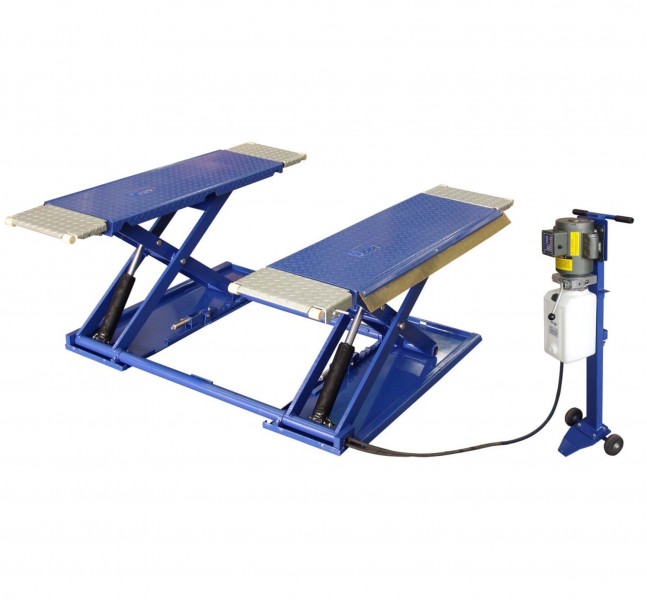

- Portable trolley for power unit and safety lock air release button
- SUV kit available
- 110V electro-hydraulic power unit standard

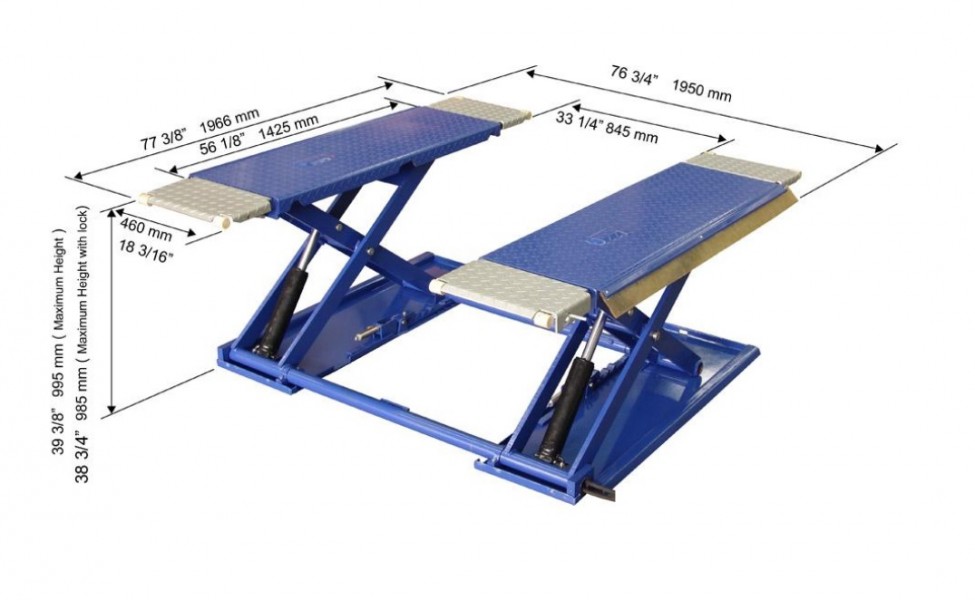

Lift Model |
HOLLSTEIN Midrise 38
|
Capacity |
6,500 lbs |
Overall Length |
77″ |
Overall Width |
76-1/2″ |
Lifting Height |
38″ |
Min. Pad Height |
4″ |
Lifting Height with Adapters |
39-1/2″ |
Width Between Runways |
33-1/4″ |
Width of Runways |
18-3/16″ |
Lifting Speed |
40S |
Pad Length |
56″ |
Ship Weight |
1,355 lbs |
Shipping Dimensions LxWxH |
L5' x W6'-5" x H10" |
Power |
115V – 15 Amp – 1PH |
