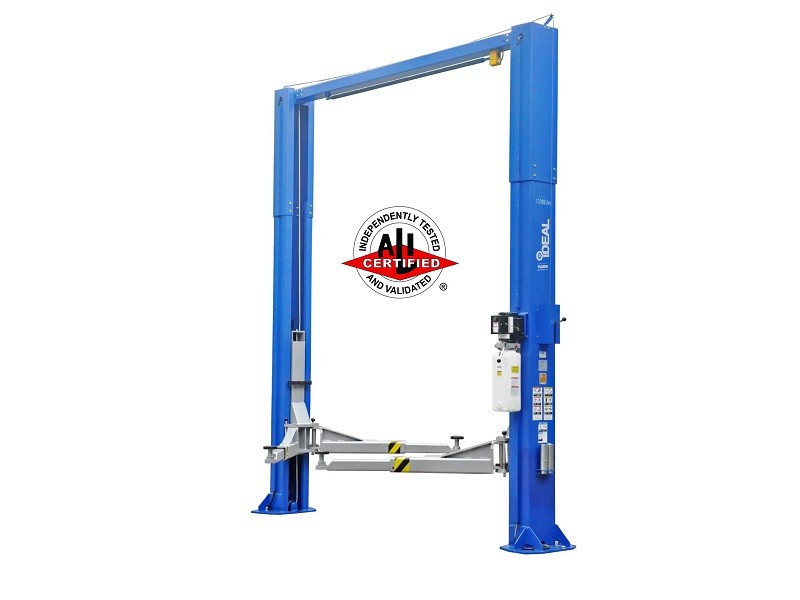

ideal ALI Certified 12,000 Lbs.Two Post Lift

Category: Two Post Lifts
SKU: TP12KSC-DX
Price: 7,435 $ 5,749 $
$7,534.00
$5,749.00
− +

  • Freight NOT included,    please call for a freight quote

  • ALI/ETL certified
  • 12,000 Lbs lifting capacity
  • Symmetric design
  • Direct drive
  • Long lasting, direct drive cylinders
  • Extra long (48") carriage for less wear on sliders
  • Padded overhead cut-off bar

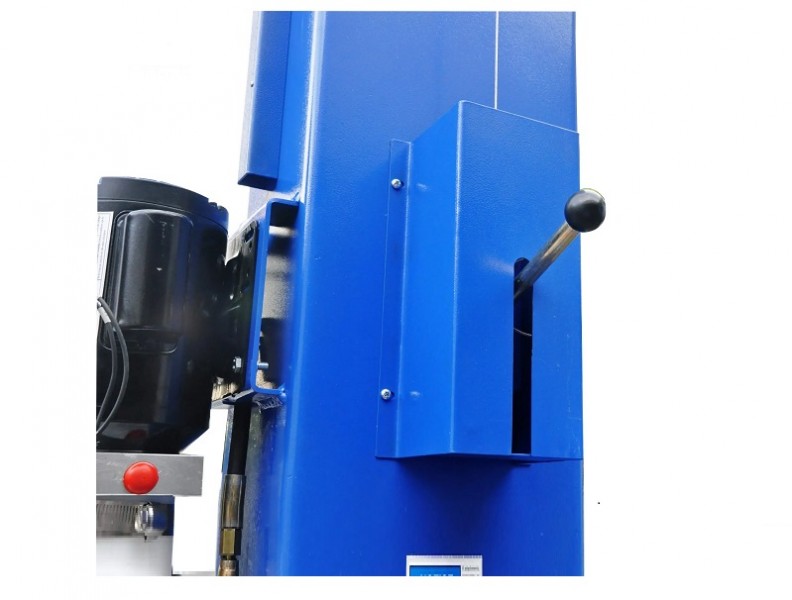

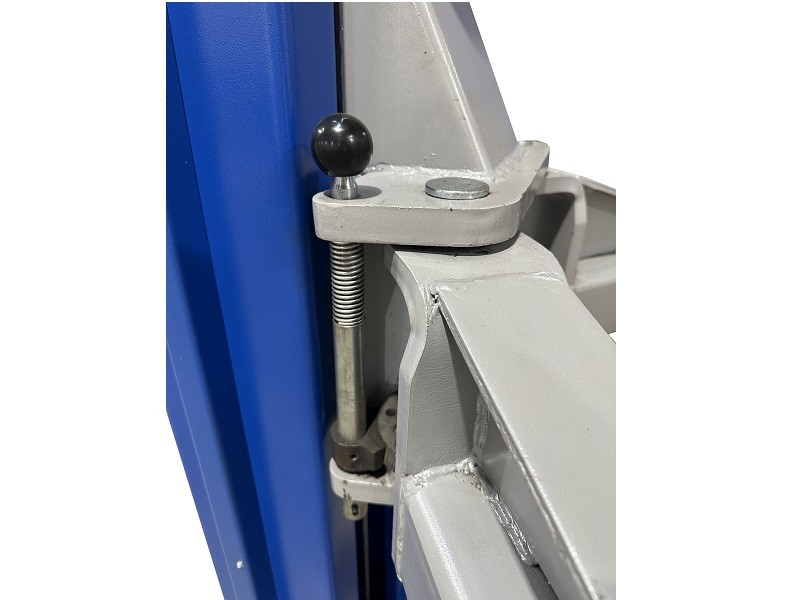

  • Single point safety lock release

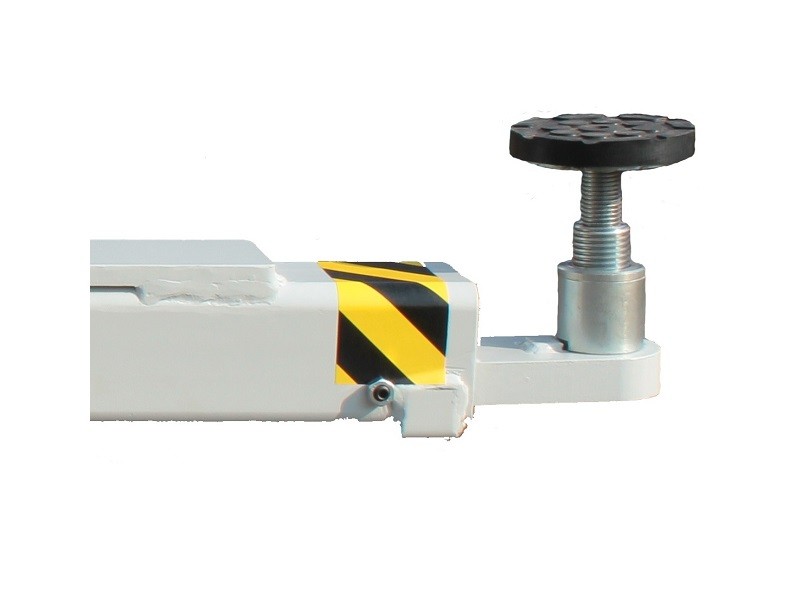

  • Spin Up Lift Pads 5” min. Pad Height

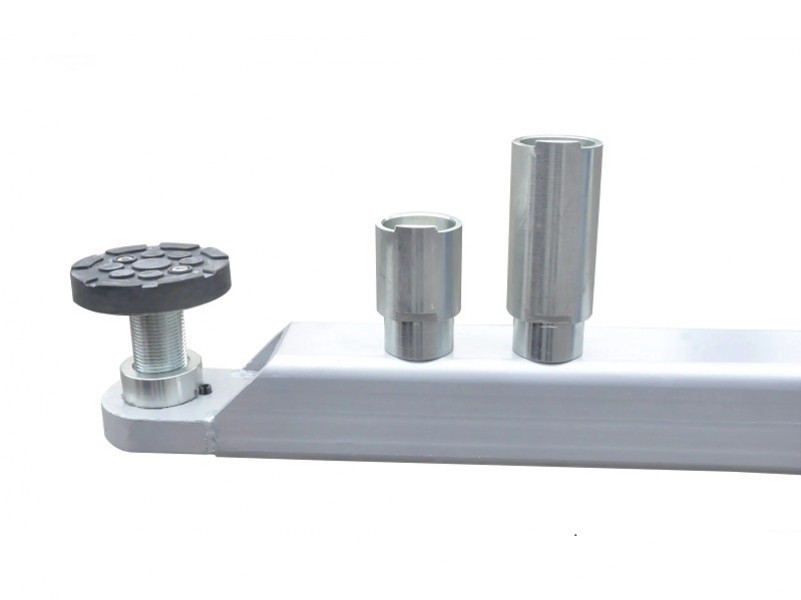

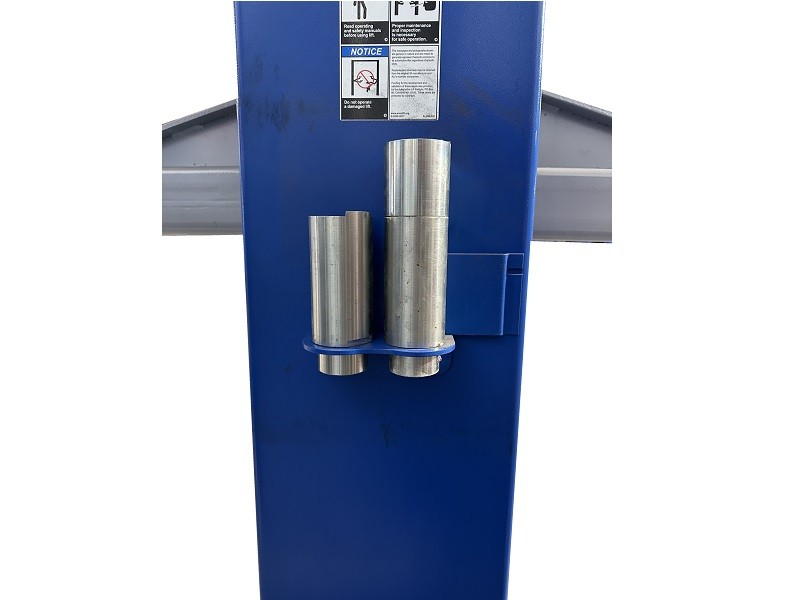

  • Drop in adapters standard
  • Powder coated paint finish

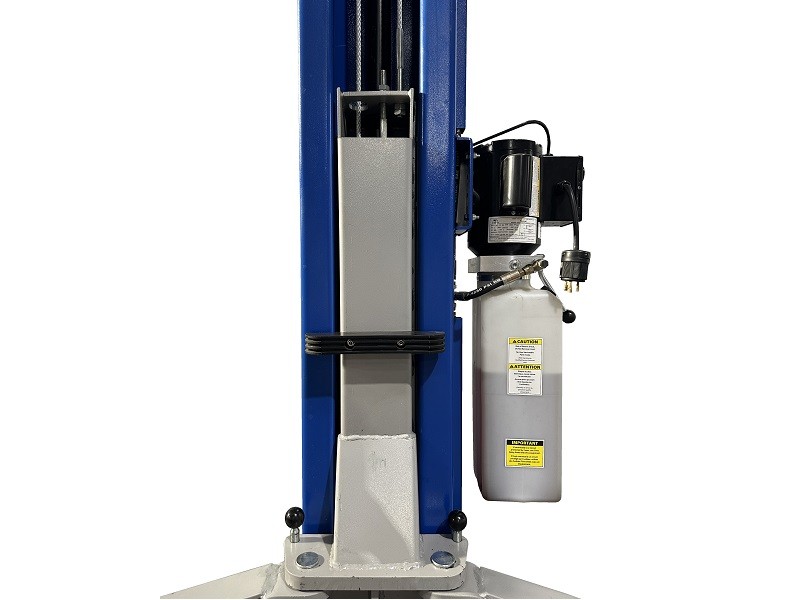

  • Duro Certifed Power Unit 220V/1phase – MET, UL, CSA
  • 5 years limited manufacture's warranty (more details in the manual)

Specifications

Lift Model TP12KSC-DX
Capacity 12,000 lbs.

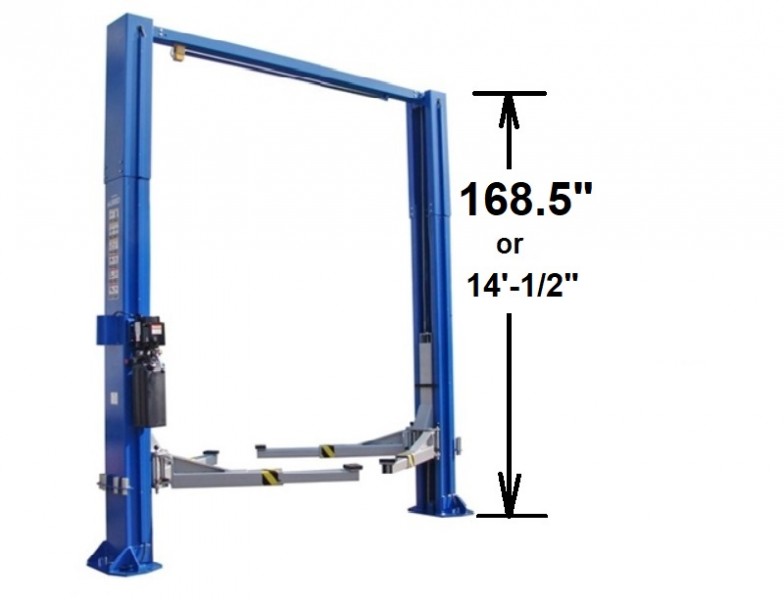

Height Overall 168-1/2″
Width Overall w/ Power Unit
151-5/16″
Max Lift Height 75″
Width Between Columns 122″
Min. Pad Height 4-7/8″
Drive Thru Clearance 109″
Lifting Speed   50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Clear Floor
Short Arm Reach – min/max
37-5/8″ – 57″
Long Arm Reach – min/max
Same
Narrow Bay Setting NA
Max Load Per Arm 3,000 lbs
Ship Weight 2,295 lbs
Power 220V – 20 AMP – 1 PH
