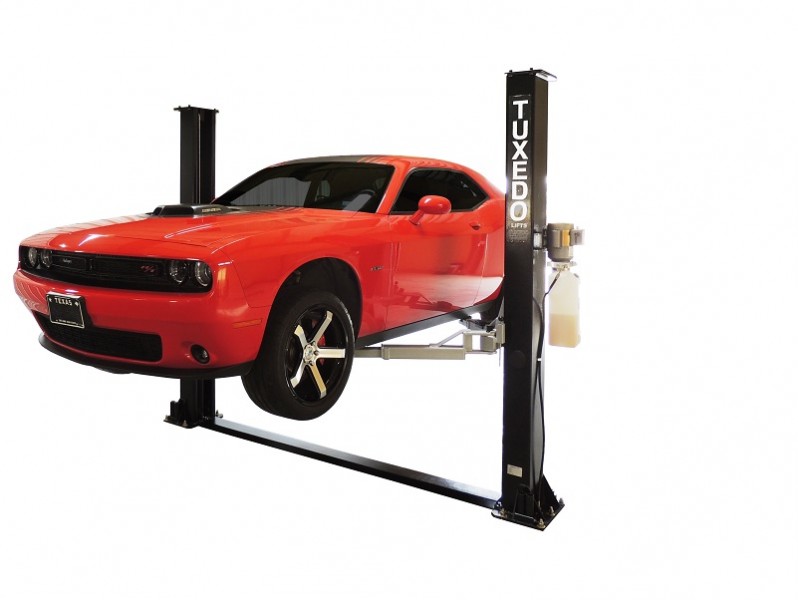

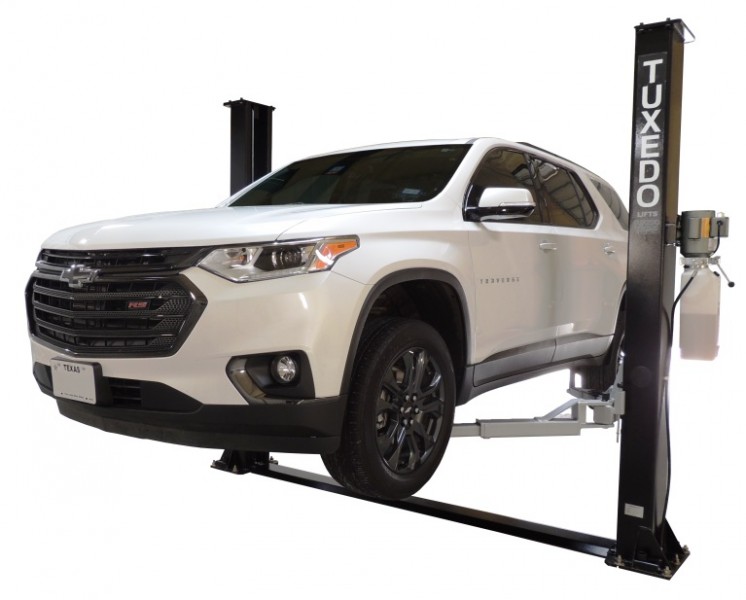

Tuxedo's Floor Plate Model TP9KF-TUX is a lift in high demand. It can hold 2,250 lbs at the lift pad when each arm is fully extended. 4 arms added together equal 9,000lbs lifting capacity total.
*Please be aware of the fact that many lift manufacturer's do not explain how they rate the lifting capacity of each of their arms and at what arm extension. So it is no surprise to find out that capacities are given at the shortest arm position ( because that is theoretically the most the lift can lift under perfect conditions). Reality is the user should be made aware of the weakest configuration of the 4 arms that he wants to lift a vehicle with. (...and that is when all arms are extended to their longest)
The durable powder coat finish gives the lift a great appearance and long lasting finish. The handy accessories such as truck adapters make this lift a winner. The 220V single phase power pack with 2.5Hp at 20 Amp will give years of trouble free service. Included is a 5 year manufacturer's limited warranty.
Click on the MAP below to find us on GOOGLE MAPS
Features
- 9,000 lbs lifting capacity which is calculated from each arms lifting capacity of 2,250 lbs fully extended
- Overall height of lift column is 112" or 9' - 4"
- Equalization cable and hydraulic hose are routed under a low profile floor plate
- One hydraulic cylinder in each column
- Low friction chain rollers

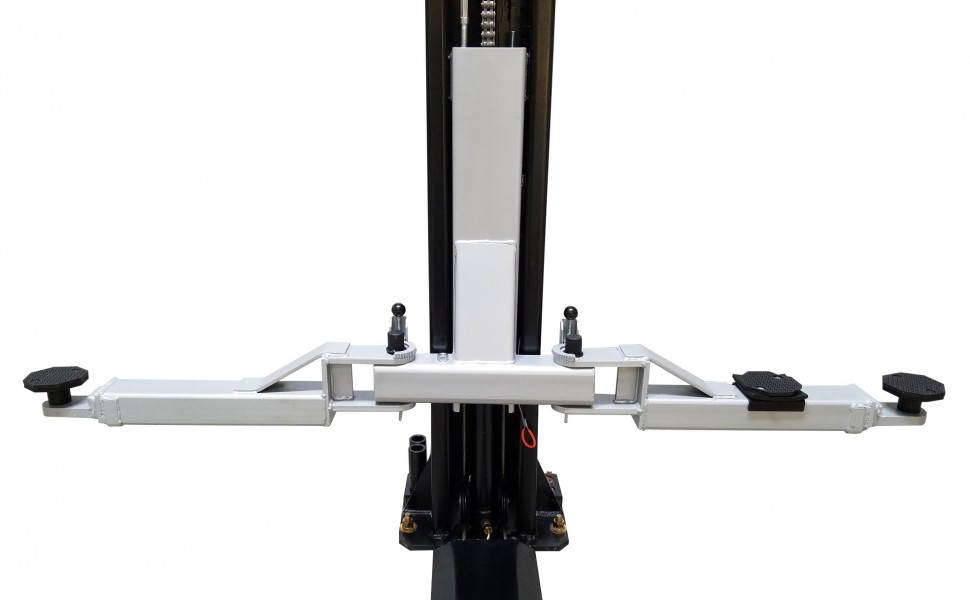

- Symmetric arm design

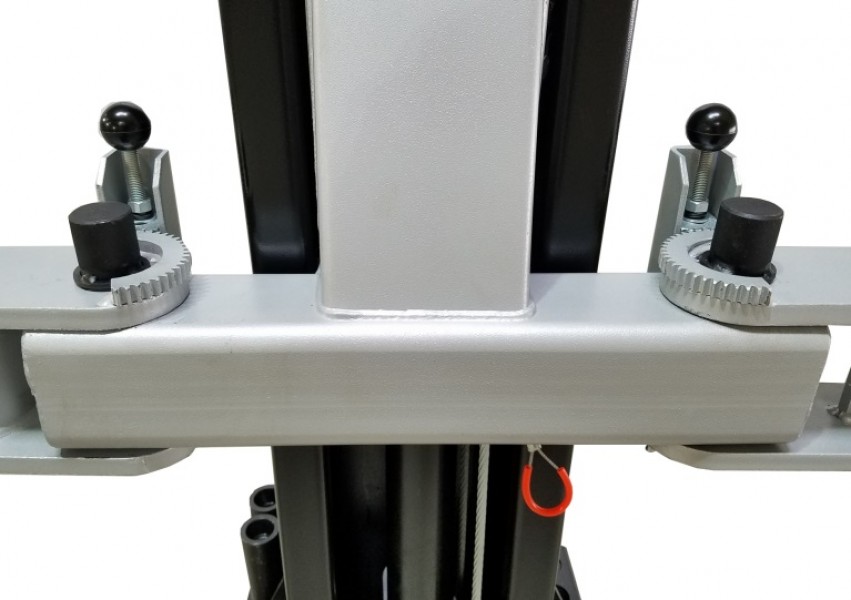

- Automatically engaging low profile arm locks

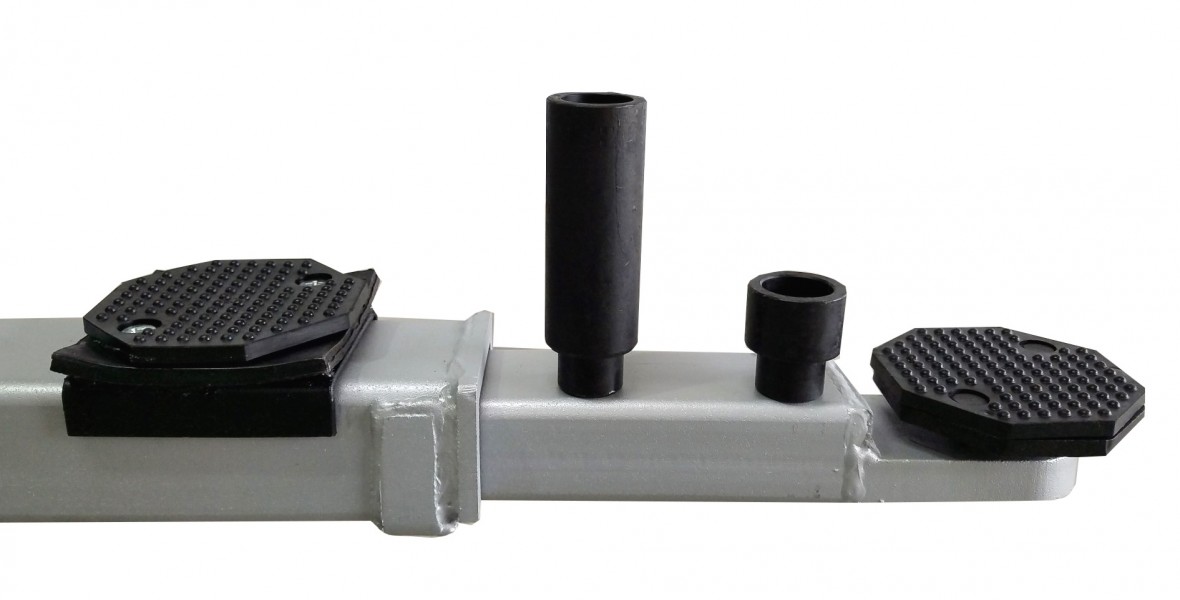

- 1.5” and 5” tall stack-able drop-in height adapters included
- Black & light grey powder-coated paint finish
- Anchor bolts included, 5,5" long by 3/4" diameter, Minimum of 4 - 1/4" cement floor required,
- 5 years limited manufacture's warranty
- Package crate is 116" (9'-8") long
