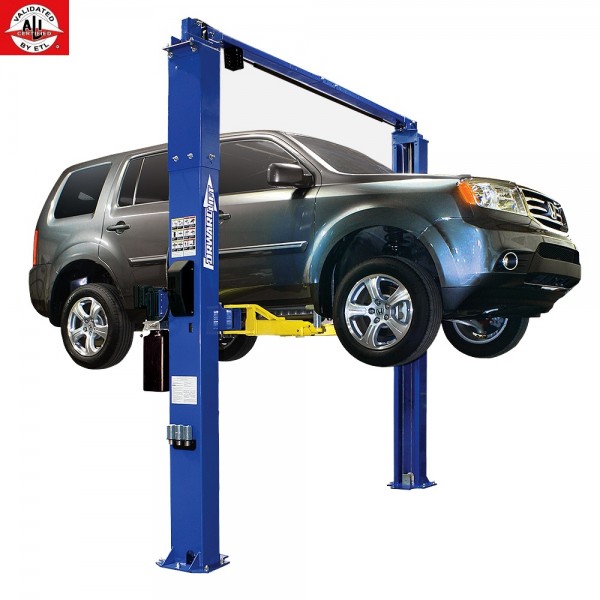

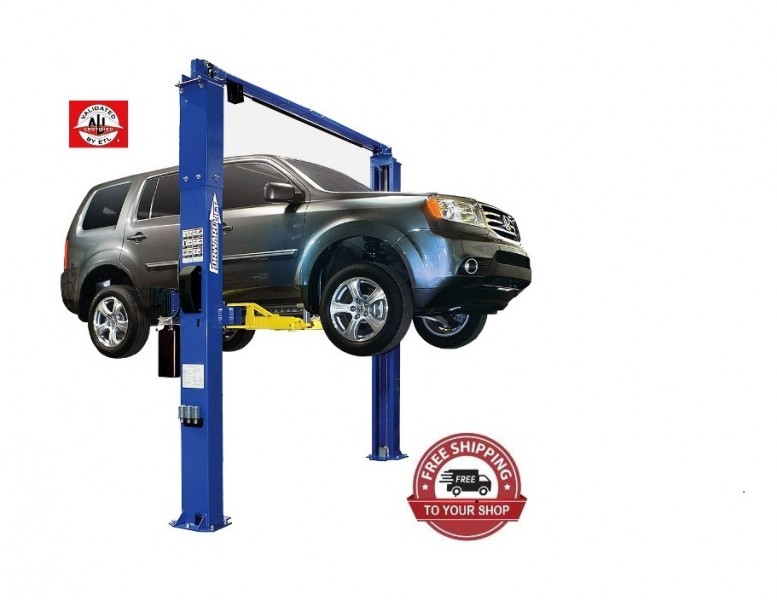

FORWARD i10 Two Post Lift

Category: Two Post Lifts
Price: 7,049 $ 5,287 $
$7,049.00
$5,287.00
− +



Free-Shipping-Truck to your shop 150x150email s.jpgfinance button  Commercial Lease monthly payments white

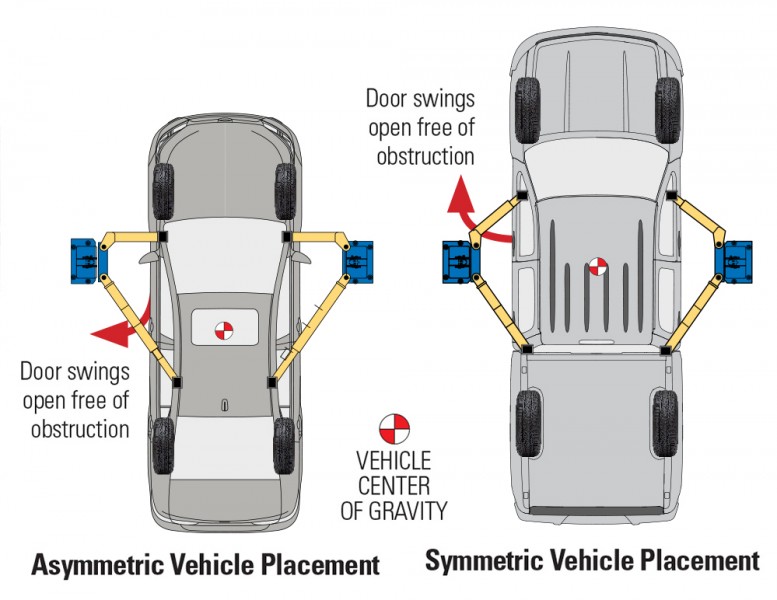

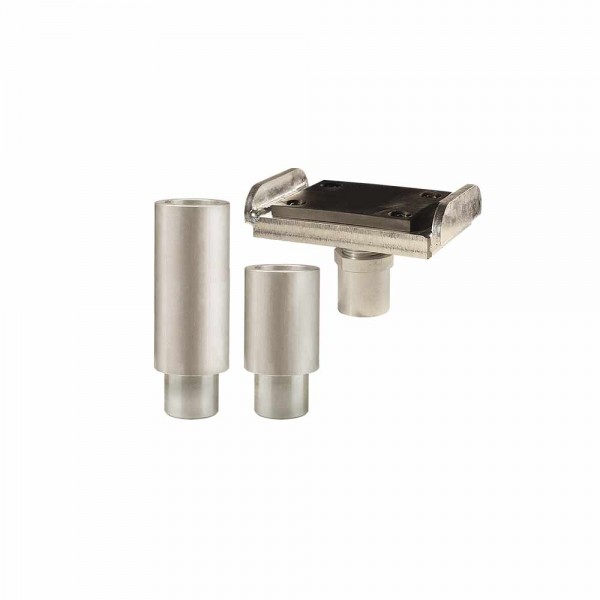

The model i10 two post lift features Angled Spot-Rite™ 3-Stage Front Arms. They accommodate vehicles both symmetrically and asymmetrically. This feature allows the technician to position the vehicle doors for easy entry and exit in front of or behind the lift column. This also helps to prevent door damage. Low-profile/oversized pads with multiple extensions to raise most vehicles on the road today. Includes four (each) adapter extensions at 3.5" and 5".



Features

  • Model; Forward i10
  • NEW; optional Height extension to 13' - 10" available, please add $ 553
  • The i10 has been third party tested by ETL and approved by ALI.
  • 10,000 lbs. capacity for raising most passenger cars, trucks and vans
  • 3-stage angled front arm design enables you to position doors in front of column or behind to avoid door damage.
  • Adapter storage bracket kit
  • Hydraulic cylinders in each column:
  • Top mounted
  • Direct pull lifting technology
  • Cylinder rod concealed inside carriage

 Options;

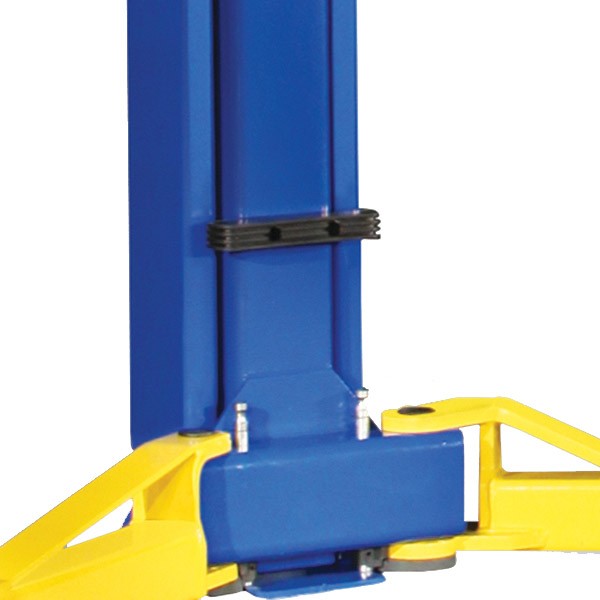

  • Door Guard

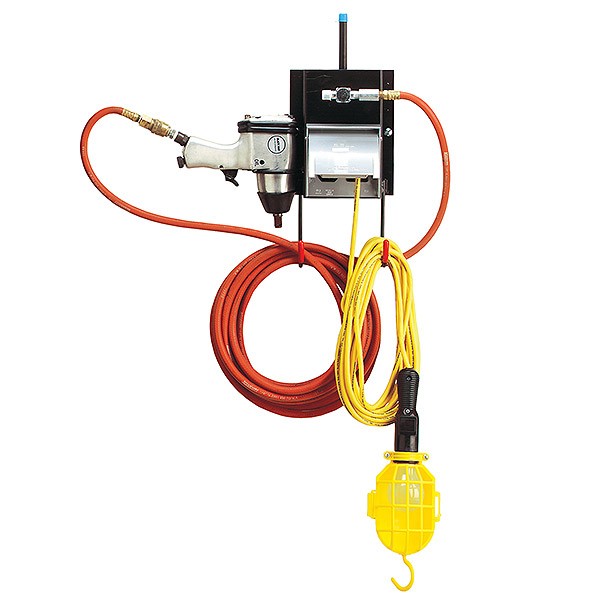

  • Air/Electric Utility Box

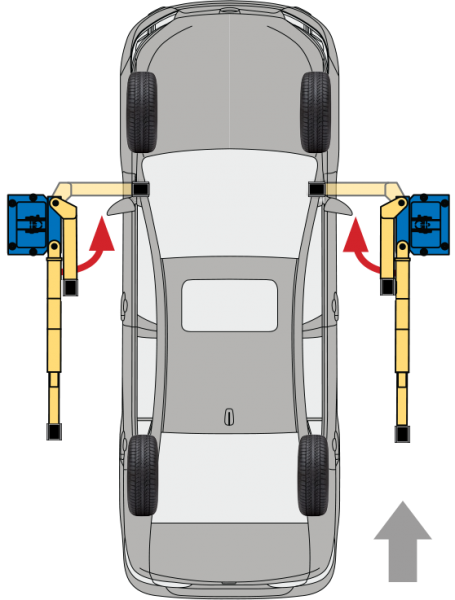

    i10 Spot-Rite™ 3-Stage Front Arm Design    vs    Standard 3-Stage Front ArmsI10 Spot-Rite™ Arm Design        Spot-Rite™ 3-Stage

  • Preferred Drive-in Arm Position
  • Front arms fold parallel to rear arms for clear vehicle drive-thru space
  • Arms swing to vehicle pick up points without front tire interference
  • Improve technician productivity with easy to spot arms
  • Spotting maneuverability improvment from the same side of column

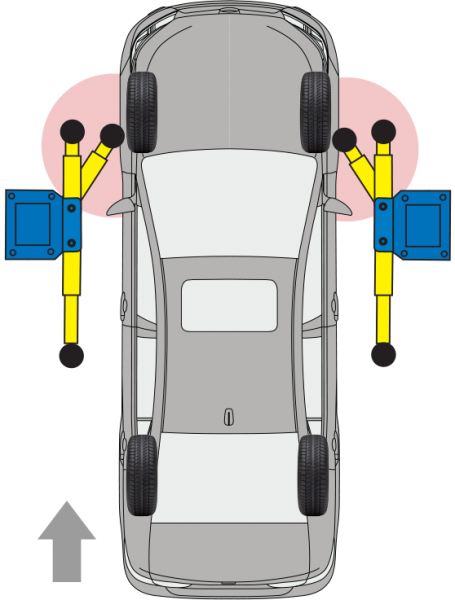

I10 Spot-Rite™ Arm Design Standard Two Post Lift

        Standard 3-Stage Arm Design

  • Restricted Drive-in Arm Position
  • Front arms do not fold parallel to rear arms next to column
  • Arms may interfere with vehicle at certain points.
  • Car must be placed more precisely to clear front tires - may require additional tech time to reposition vehicle.

    The i10 2-post lift comes standard with offset, three-stage front arms.

  • These arms fold parallel to the rear arms during vehicle drive-in .
  • This allows them to be set in an asymmetric lifting position, behind the front tires during vehicle drive-in.
  • The vehicle's lifting points can be easily and quickly spotted without having to reposition the vehicle back and forth
    • to reach it's manufactur's lift points.

Specifications

Model i10N400MBL
Capacity 10,000lbs
Max. Rise w/5" extension 76-1/4" (1937mm)
Overall Height of Lift 143" (3632mm)  or  optional 13' - 10" with height extension ( $475)
Overall Width of Lift 131" or optional 137" (3327mm / 4380mm)
Drive through clearance 99" or optional 105" (2515mm / 2667mm)
Overhead switch height 137 - 5/8" (3496mm)
Front reach (Min/Max) 23" / 44-1/2" (584mm / 1130mm)
Rear reach (Min/Max) 36" / 58" (914mm / 1473mm)
Min/Max Adapter Height 3-3/4" (95mm) no adapter extension
8-3/4" (222mm) w/5" adapter extension
Width Inside Column 109" or optional 115" (2769mm / 2921mm)
Adapter Heights 3-1/2" and  5"
Voltage/Amps 208 / 230, 15 amps; 208 / 230, 16 amps
Motor 1ph*/2HP/50Hz; 1ph*/2HP/60Hz
minimum Ceiling height required 144" (3658mm)    (or 12')
*3-phase available at additional cost
Lifts available in blue and red
Specifications subject to change without notice or liability
