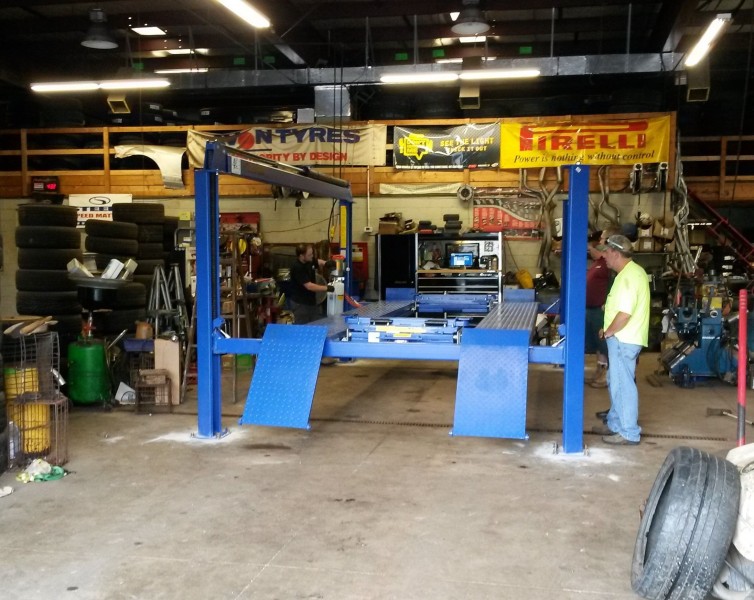

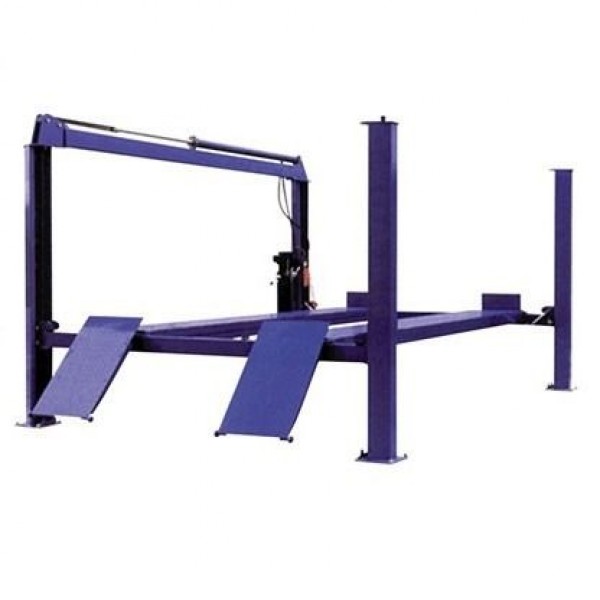

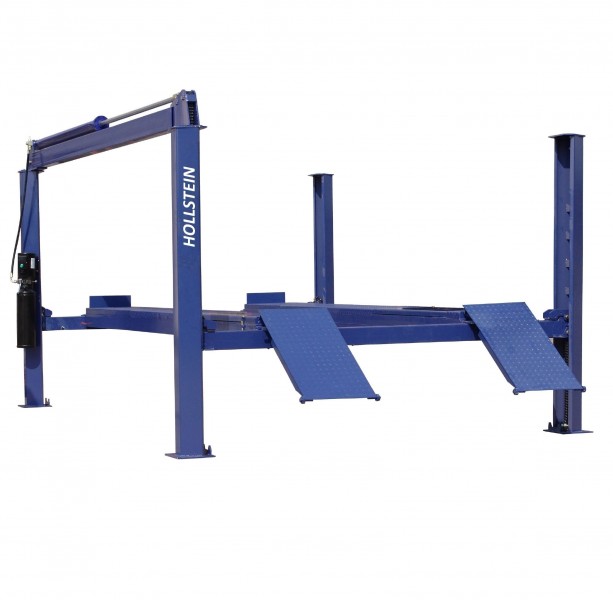

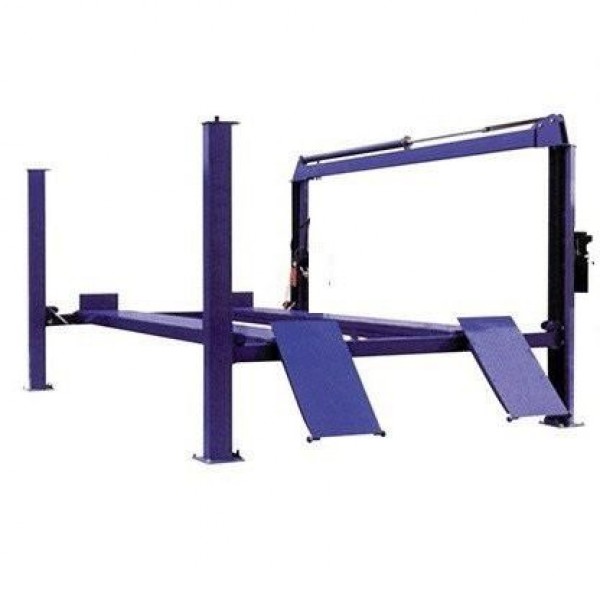

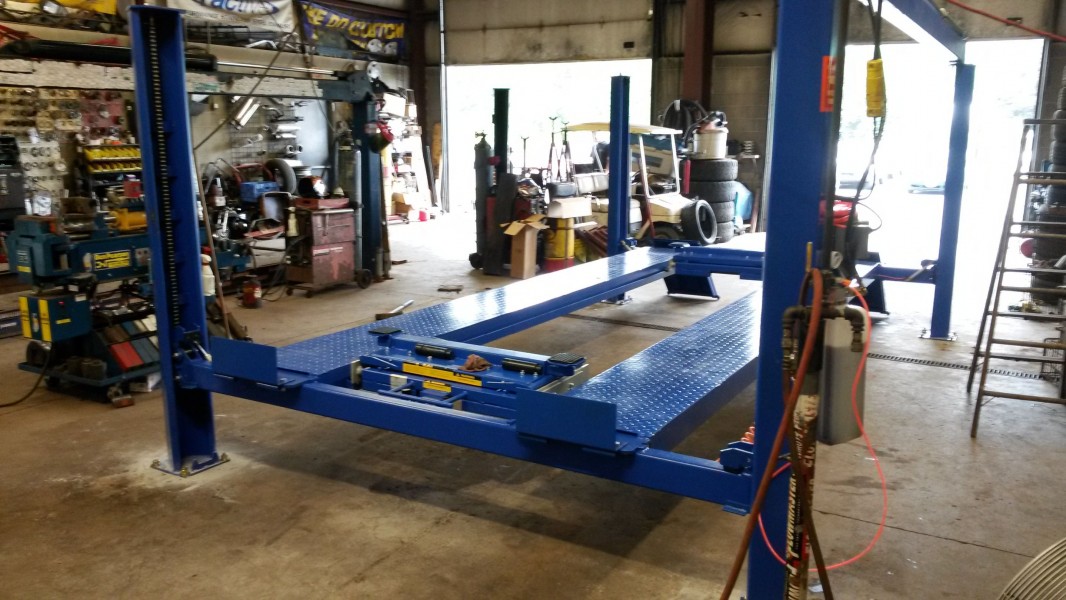

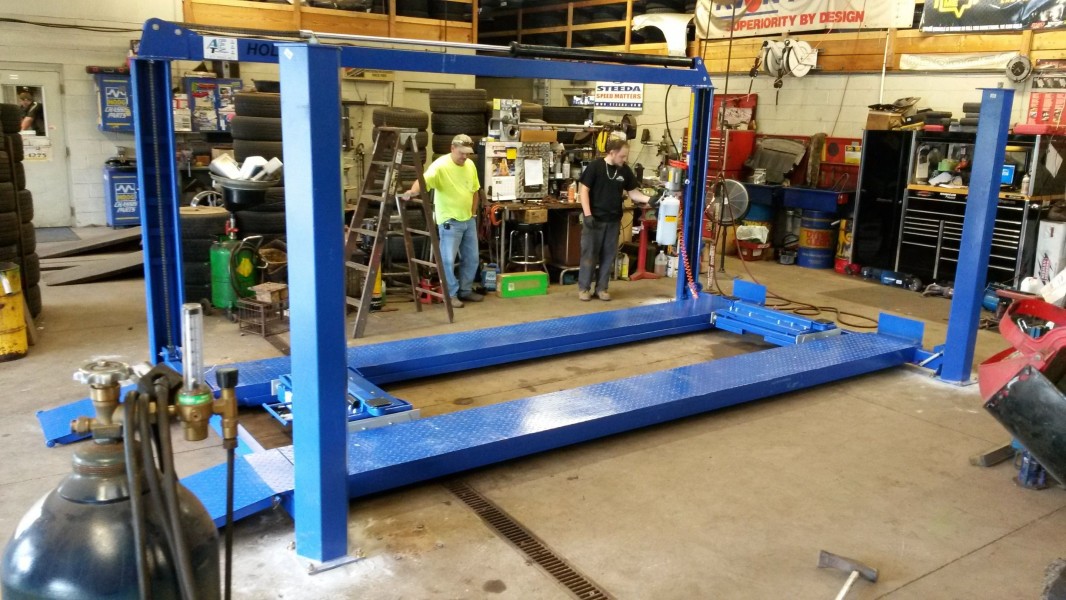

HOLLSTEIN 14,000 Lbs. 4 Post Chain Drive

Category: Four Post Lifts
+

finance button  Commercial Lease monthly payments white

  • 14,000 Lbs lifting capacity with flat runways
  • Chain driven versus cable driven. The chain will outlast the cable many times offer and therefor requires less maintenance
  • The runway spacing is flexible due to the design. They can be moved from 28 1/4" to 40 3/4" opening between the runways. No cables run thru the runways to require them to be tightened down. If the job calls for more openness under the vehicle, just move the runway out to get better access.

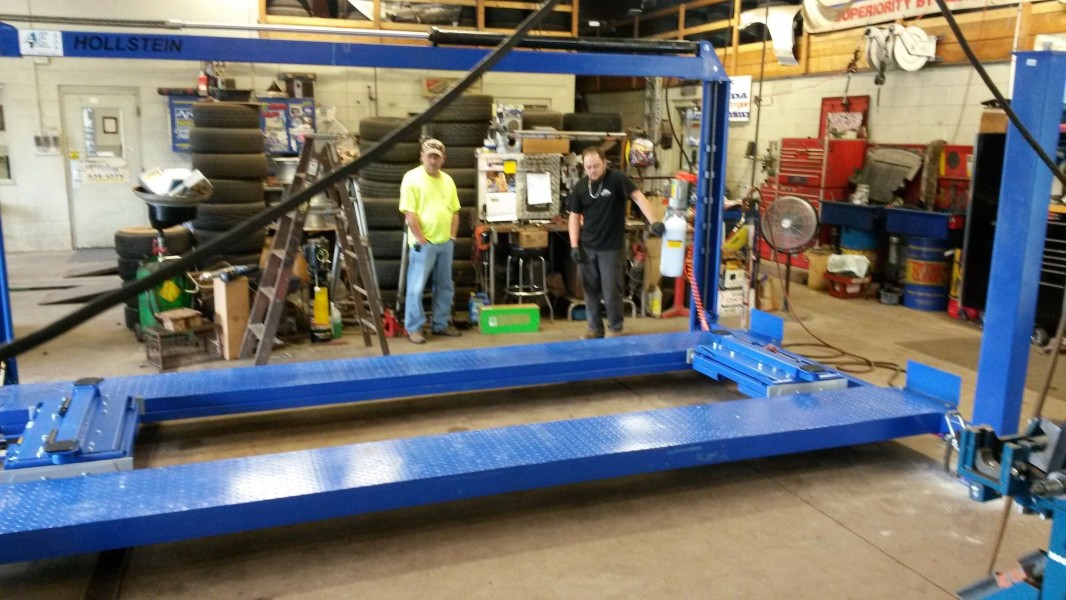

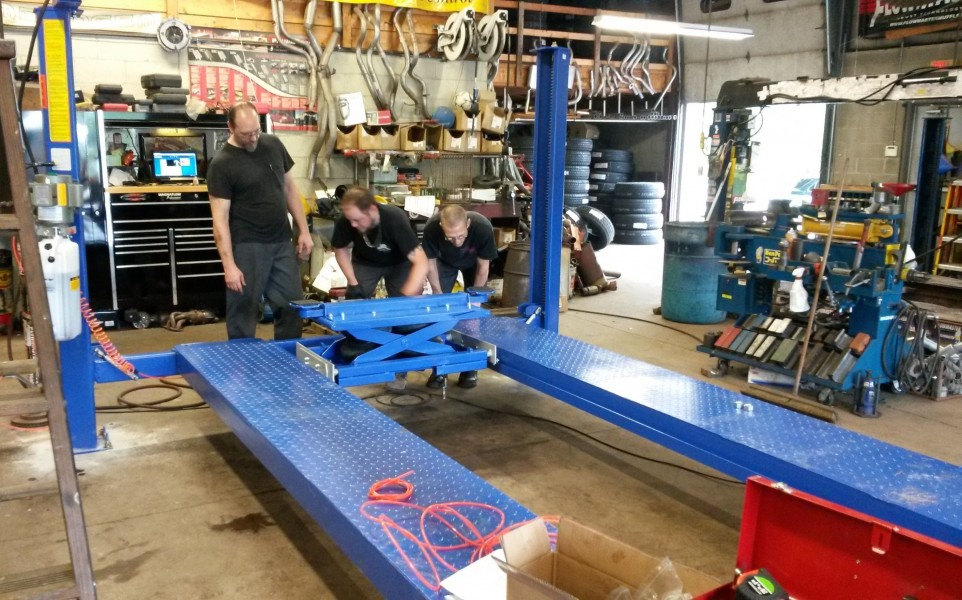

  • Optional Rolling Jacks accommodate the flexible design by moving in and out as well.
  • Single point pneumatic safety release mechanism
  • 20" wide non-skid, diamond plate runways
  • The approach ramps are 36" long and the lift platforms are 7" high when lowered all the way down
  • Powder-coated paint finish
  • Heavy C-channel construction
  • Hydraulic Operation for minimum maintenance
  • 5 years limited manufacture's warranty

Limited time special offer. PICK UP from our closest warehouse or have it shipped at additional cost. Please call 570 639 2344 for availability.

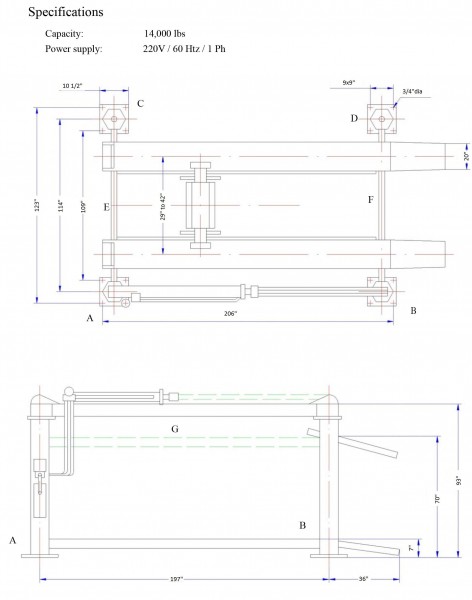

Specifications;

  •    Flat Runways  Alignment Runways
     Lifting capacity  14,000lbs  14,000lbs
     Overall Length w/ Ramp  237"  237"
     Overall Width (Outside Baseplates)  123"  123"
     Lifting Height  65-1/4"  67"
     Width Between Posts  108"  108"
     Width between Runways   30" to 41"  30" to 41"
     Width of Runways   20-1/4  20-1/4
     Column Height   85”  85”
     Max. Wheel base (2 wheel)   -  192”
     Max. Wheel base (4 wheel)   -  152"
     Ramp Length  30”  30”
     Max. Clearance under Track  60”  60”
     Base Plate Dimensions  10.5" x 10.5"  10.5" x 10.5"
     Ship Weight  2,615  lbs  2959 lbs
     Power  220V, 20 Amp, Single  Phase  220V, 20 Amp, Single Phase
