| Specifications | EFP8 |
| Capacity | 8,000 lbs. |
| Rise | 72-1/2" |
| Overall length w/ approach ramps | 207-1/2" |
| Overall length w/o approach ramps | 175-1/2" |
| Overall width w/o motor | 103-1/2" |
| Approach ramp Length | 32" |
| Runway width | 18-1/2" |
| Runway length | 169-1/2" |
| Runway height | 4-1/2" |
| Height of columns | 81-1/2" |
| Clearance between columns | 94" |
| Clearance between runways | 38" |
| Outside runway to outside runway | 75" |
| Clearance under runway | 68" |
| Motor specs | 110VAC, 1HP |
| Specifications subject to change without notice or liability | |

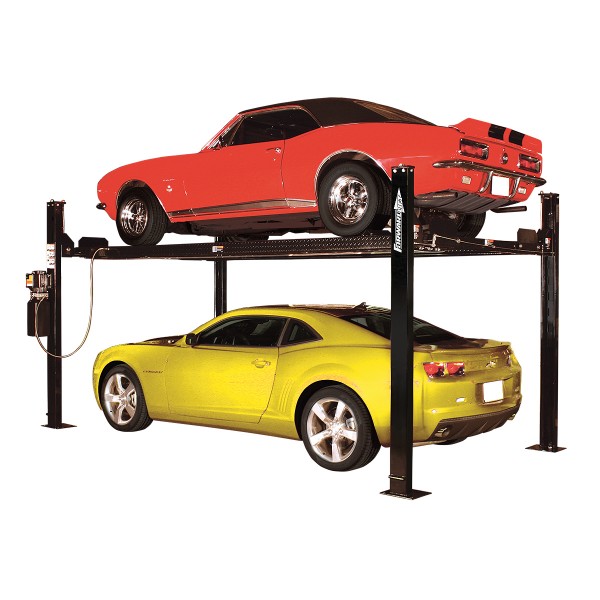

Forward EFP8 Four Post Lift
Forward EFP8 Four-Post Lift with 8,000 lbs. lifting capacity, perfect for the home enthusiast or commercial user.
Features:
- ALI/ETL Certified
- Multi-position locks allow runways to be level at any lock position
- Single point lock release

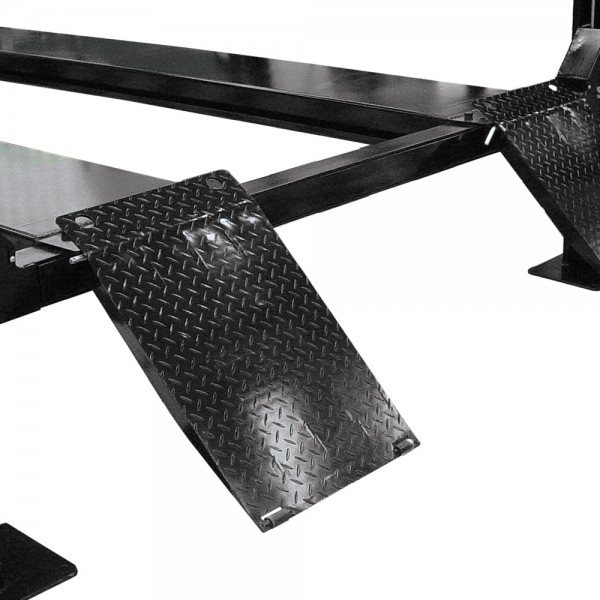

- Includes steel approach ramps
- Perfect for home use
- Powder coat finish

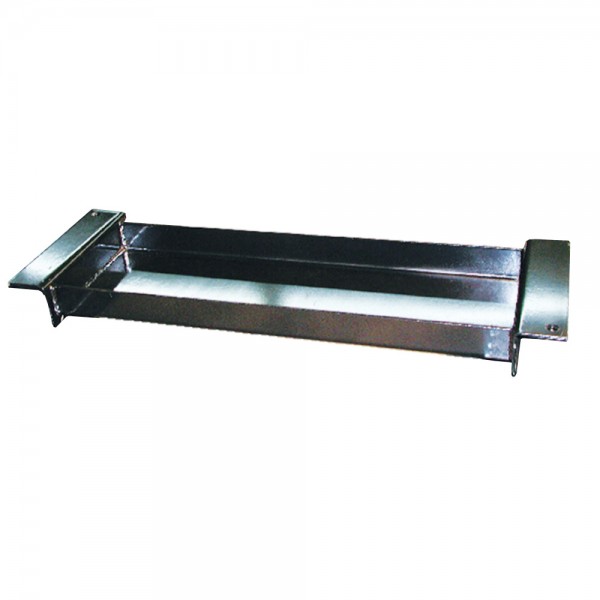

- Includes jack tray

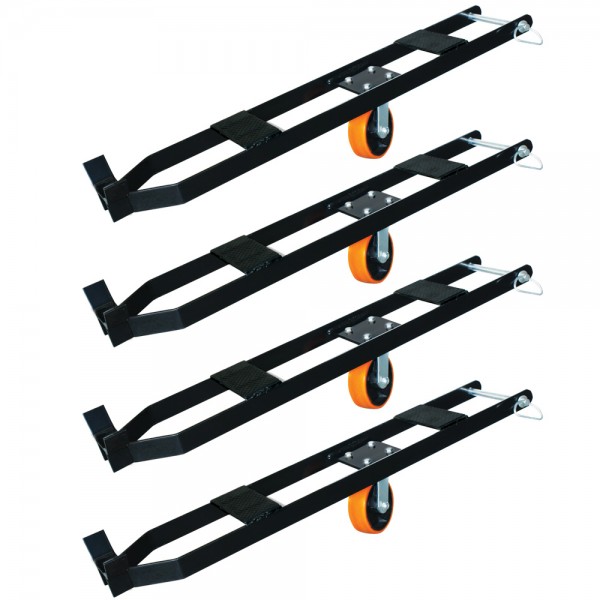

- Includes wheel caster kit

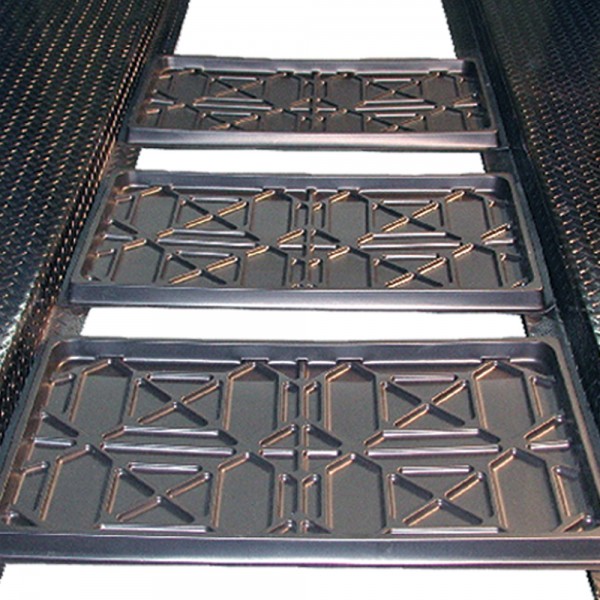

- Includes drip trays
Capacity: 8,000 lbs.
Standard lift colors include black.
Location
Brochures
Related items
Category:
Parking & Storage Lifts
Price: 1,688 $ 1,195 $

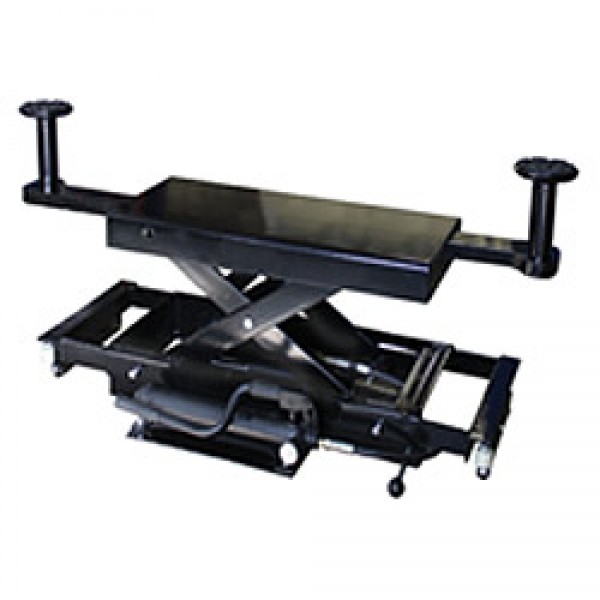

3,500 lbs. lifting capacity hydraulic hand pump sliding jack for the 4 post...
