Forward CRO14 OPEN-FRONT Four Post Lift

Category: Four Post Lifts
Price: 16,019 $ 12,677 $
$16,919.00
$12,677.00
+

Open-front Drive-On Lift from FORWARD

Free-Shipping-Truck to your shop 150x150email s.jpgfinance button  Commercial Lease monthly payments white

The foundation of a Forward four post lift is the cable and pulley system under the runways. All hydraulics and mechanical lifting components are concealed in this area; tucked out of the way for a clean finish however easily accessible for inspection when needed. Forward Lift offers a durable powder coated hammer tone paint finish on its lifts. Our four post lifts have a multi-position lock component which allows any 4 post lift to be level at any lock position. Self chocking approach ramps and wheel chocks come standard with the CRO14.

Additional Features:

  • 14,000 lbs. capacity
  • Heavy duty hydraulic cylinder
  • Single Point latch release system
  • One piece formed runway design incorporates rolling jack channels
  • Multiple position latch points in each structural leg

Automotive Lift Institute Logo

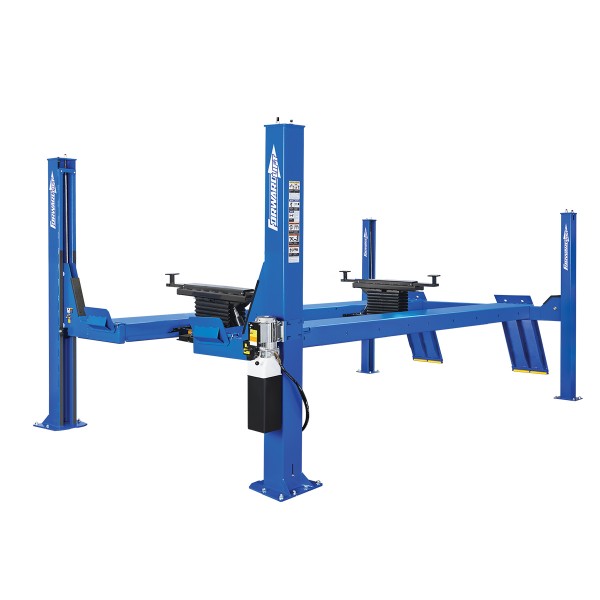

Shown: CRO14N101Y
Capacity: 14,000 lbs.

Specifications

SpecificationsCRO14N101YDifferencesCRO14N102Y  EXTRA LONG
Capacity 14,000 lbs. (6350kg)   14,000 lbs. (6350kg)
Rise 78-3/4″ (2000mm)   78-3/4″ (2000mm)

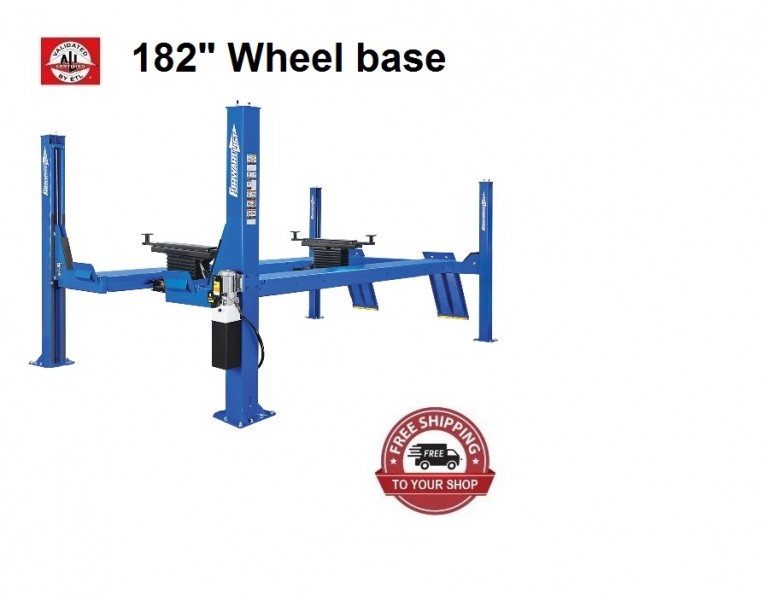

Maximum Wheelbase 182-1/2″ (4635mm) <32-1/2″> 215″ (5461mm)
Overall Length 253″ (6426mm) <33″> 286″ (7264mm)
Overall Width 140-1/2″ (3568mm)   140-1/2″ (3568mm)
Width Inside Columns 116-1/4″ (2953mm)   116-1/4″ (2953mm)
Length Between Columns 194 3/4″ (4946mm) <33″> 227 3/4″ (4946mm)
Overall Height 109-1/16″ (2768mm)   109-1/16″ (2768mm)
Runway Width 20″ (508mm)   20″ (508mm)
Runway Height 7″ (178mm)   7″ (178mm)
Width Between Runways 43″ (1092mm)   43″ (1092mm)
Rise Time 79 seconds   79 seconds
Voltage* 208/230v   208/230v
Motor 2HP   2HP
Minimum Bay Size 15′ x 26″ (4572 x 7925mm) <24″> 15′ x 28″ (4572 x 8534mm)

* single phase standard; 3-phase available at additional cost
Specifications subject to change without notice or liability



4 Post Lift Accessories

Efficiency kit for CR14/CRO14: 2 Rolling Jacks and internal Air line kit

S100183

  $6,499

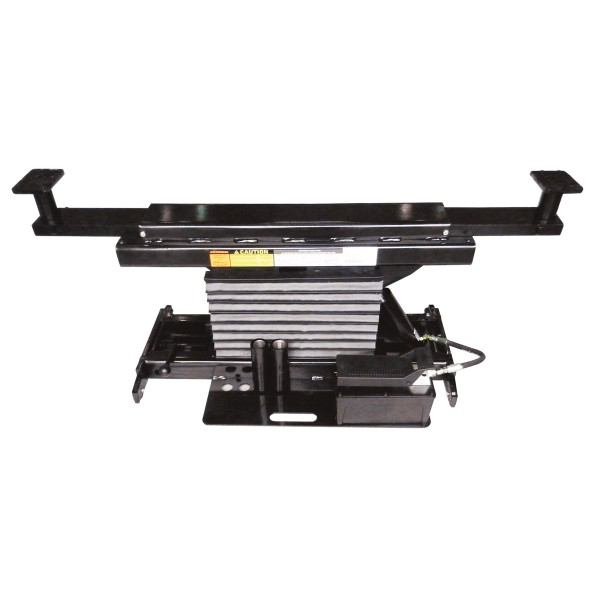

Rolling Jack

 RRJ70GBK  RRJ70G $3,004

 Bolt-on alignment kit

S100137M  Four Post Lift Alignment Kit Forward Lift  $3,503

 Standard Turntables

 TT1000  Four Post Lift Radius Gauge  $435

 Stainless Steel Turntables

 TT1001 Four Post Lift Radius Gauge  $1,885

 Inline air kit



 FC5760-14  Four Post Lift Air Line Kit  $492

 Light Kit

FA5700  Light Kit $932


Oil drain pan

FC5967

30 gallon

 Four Post Lift Oil Drain Pan  $1,025

Drive-on Ramps

S100150Y drive on ramps $693



Standard lift colors include blue and red.
