Forward CR14 EL Four Post Lift

Category: Four Post Lifts
Price: 14,252 $ 10,689 $
$14,252.00
$10,689.00
+

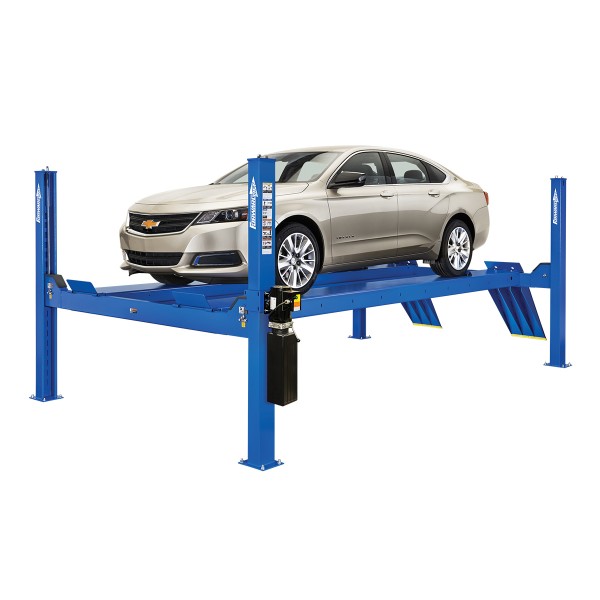

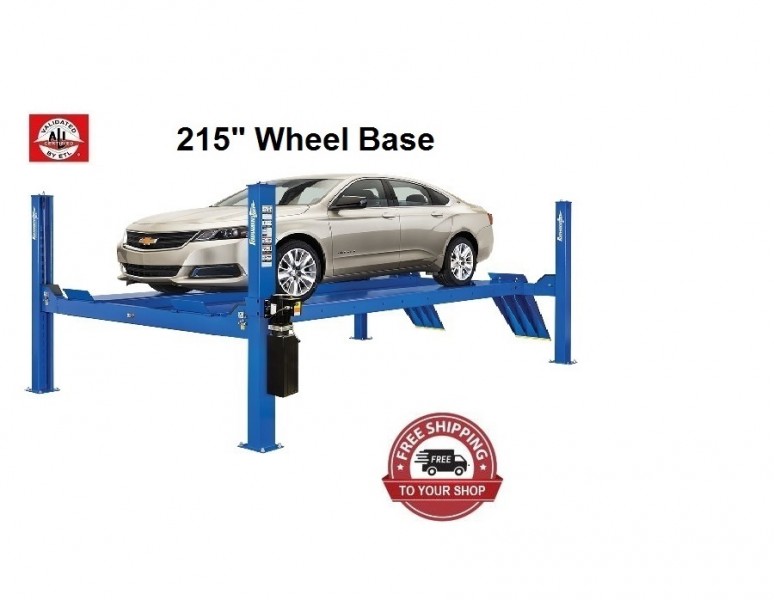

Forward Extra-Long CR14 Four Post Lift

Free-Shipping-Truck to your shop 150x150email s.jpgfinance button  Commercial Lease monthly payments white

DESIGNED TO MEET THE SERVICE NEEDS OF TODAY'S CARS, VANS AND TRUCKS!.
NEW taller column design adds an 79" rise height providing techs better vehicle service access. This coupled with the multi-position lock components keeps your shop flexible.
A new improved heavy duty high-performance cable and sheaves system conveniently concealed under the runway - this heavy duty system allows for greater capacity and durability. Tucked under the lift this system remains accessible for quick inspections yet doesn't pose a snag issue while working.
NEW Durable powder coat finish ensures your lift will continue to look good for years of service.
Self-chocking approach ramps engage when lift is raised - protective strips on ramps prevent floor gouging.
All Forward products are proof load tested to 1½ times rated capacity! The combination of high quality products and service provides you with the very best value - while not compromising safety, functionality or durability.

Additional Features:

  • 14,000 lbs. capacity
  • Heavy duty hydraulic cylinder
  • Single Point latch release system
  • One piece formed runway design incorporates rolling jack channels
  • Multiple position latch points in each structural leg

Optional Accessories:

  • 7,000 lbs. capacity rolling bridge jacks
  • Drive Through ramps optional
  • Internal airline kit
  • Turning radius gauges
  • Power unit cover
  • 3-phase motor



Automotive Lift Institute Logo


Capacity: 14,000 lbs.

Specifications

SpecificationsCR14N201YDifferencesCR14N202Y  EXTRA LONG
Capacity 14,000 lbs. (6350kg)   14,000 lbs. (6350kg)
Rise 78-3/4″ (2000mm)   78-3/4″ (2000mm)
Maximum Wheelbase 182-1/2″ (4635mm) <32-1/2 “> 215″ (5460mm)
Overall Length 250″ (6350mm) <33 “> 283″ (7188mm)
Overall Width 131-3/4″ (3568mm)   131-3/4″ (3568mm)
Width Inside Columns 116-1/4″ (2953mm)   116-1/4″ (2953mm)
Length Between Columns 195-1/4″ (4946mm) <33 “> 228-1/4″ (4946mm)
Overall Height 90-1/2″ (2299mm)   90-1/2″ (2299mm)
Runway Width 20″ (508mm)   20″ (508mm)
Runway Height 7″ (178mm)   7″ (178mm)
Width Between Runways 43″ (1092mm) or 46″ (1168mm)   43″ (1092mm) or 46″ (1168mm)
Rise Time 72 seconds   72 seconds
Voltage* 208/230v   208/230v
Motor 2HP   2HP
Minimum Bay Size 15′ x 25′ (4572 x 7620mm) <36 “> 15′ x 28′ (4572 x 8534mm)

* single phase standard; 3-phase available at additional cost
Specifications subject to change without notice or liability

4 Post Lift Accessories

Efficiency kit for CR14/CRO14: 2 Rolling Jacks and internal Air line kit

S100183

  $6,499

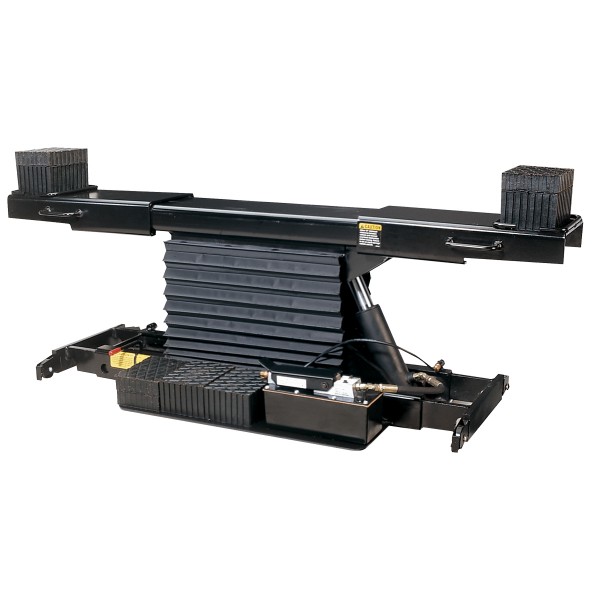

Rolling Jack

 RRJ70GBK  RRJ70G $3,004

 Bolt-on alignment kit

S100137M  Four Post Lift Alignment Kit Forward Lift  $3,503

 Standard Turntables

 TT1000  Four Post Lift Radius Gauge  $435

 Stainless Steel Turntables

 TT1001 Four Post Lift Radius Gauge  $1,885

 Inline air kit



 FC5760-14  Four Post Lift Air Line Kit  $492

 Light Kit

FA5700  Light Kit $932


Oil drain pan

FC5967

30 gallon

 Four Post Lift Oil Drain Pan  $1,025

Drive-on Ramps

S100150Y drive on ramps $693

Standard lift colors include blue and red.
