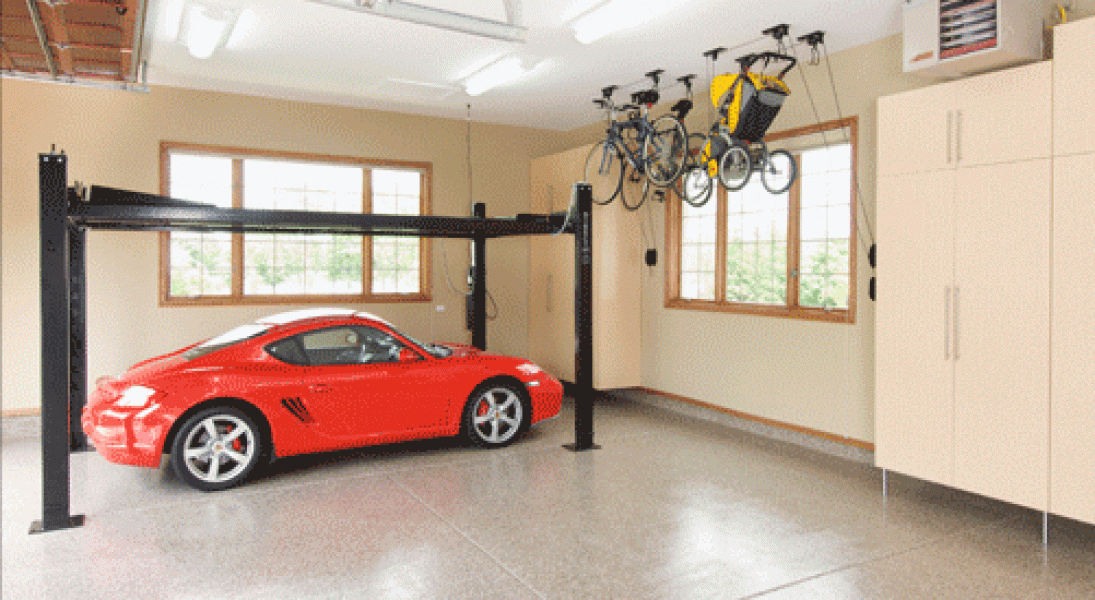

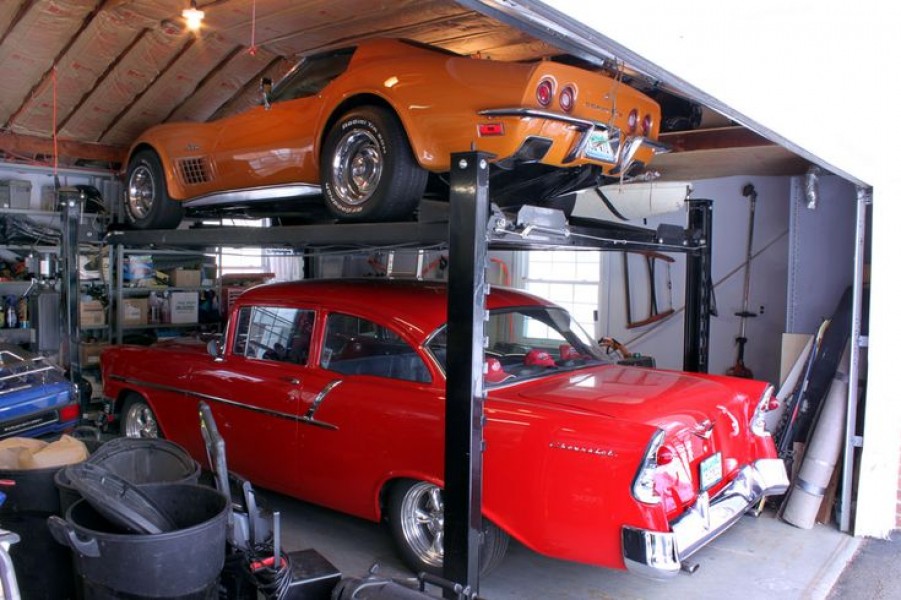

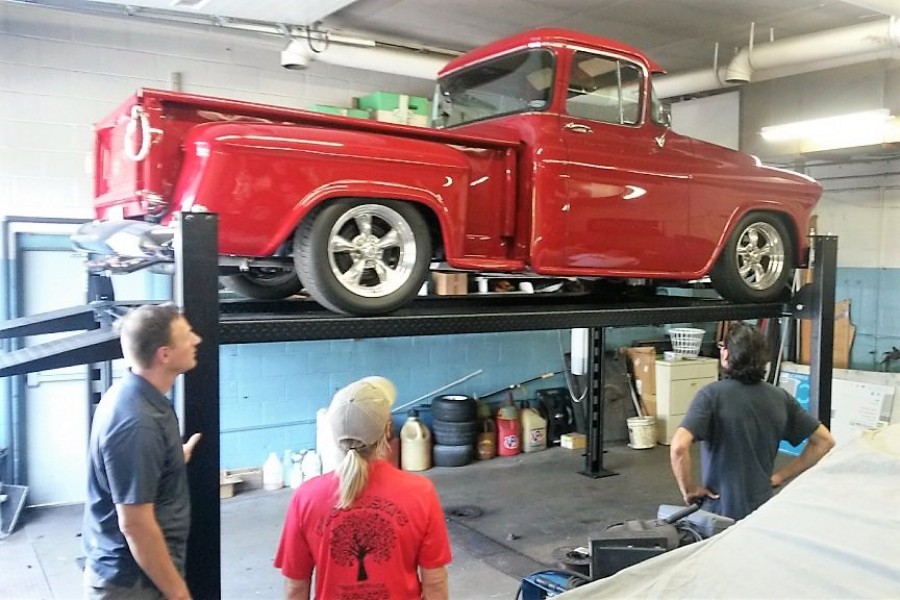

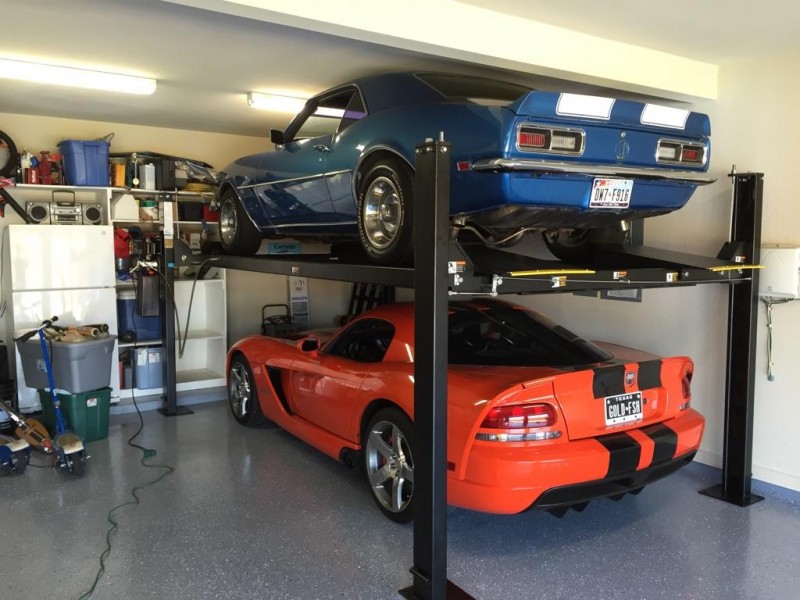

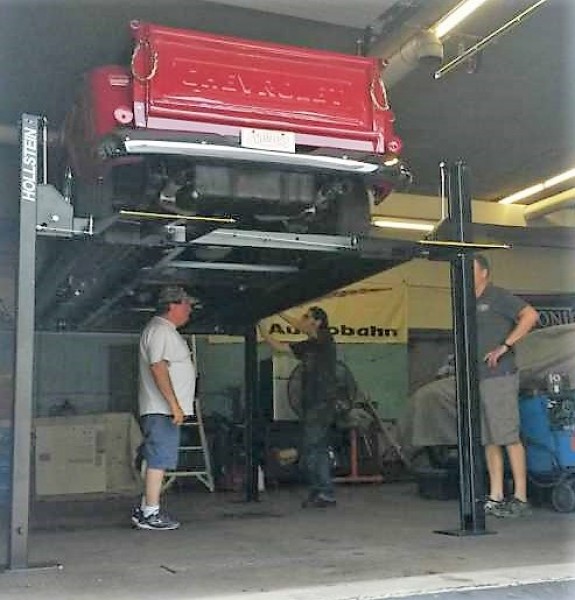

HOLLSTEIN Park 8000XLT

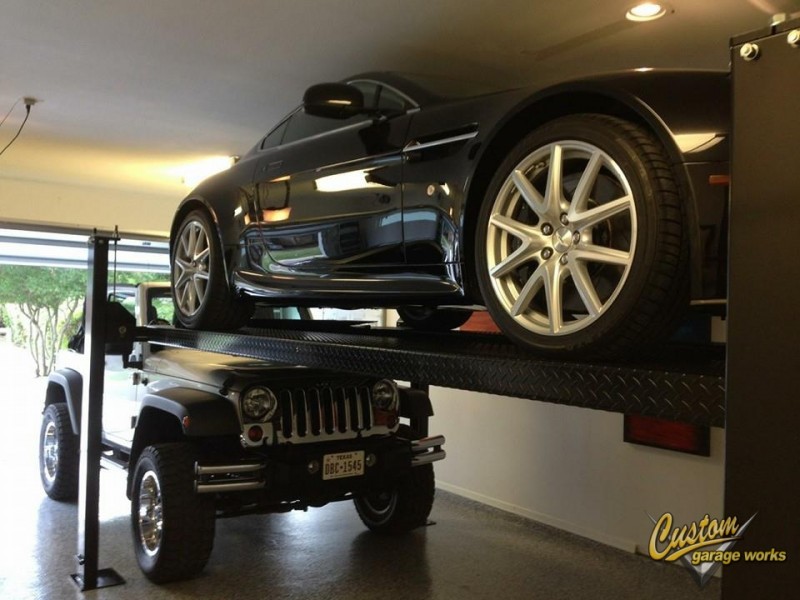

The LOCK LADDER SAFETY SYSTEM is an important feature that all our parking and storage lifts have built in. It can be identified in every picture of a silver colored lock ladder that is located in each of the 4 columns. They are height adjustable to accommodate the unevenness of every shop floor and must be adjusted to have level runways when the upper car is in it's parked position safely resting in the lock. Not all manufacturers pay attention to this important feature and don't provide adjustable lock ladders just to offer their products cheaper.
- Longer runways, taller and wider posts make this lift ideal for larger vehicles,
- 8,000 Lbs lifting capacity
- Carriages completely enclosed for safety
- Redundant LOCK LADDER SAFETY SYSTEM with "auto engage" locking bar in the event of cable failure
- Extra large slider blocks for added stability
- 10 lock positions
- Aircraft quality cables rated at 14,500 lbs
- 18" wide runways formed with one-piece 3/16" non-skid diamond plate
- Easy operation: Lock release handle located near power unit
- Large 3" diameter cylinder

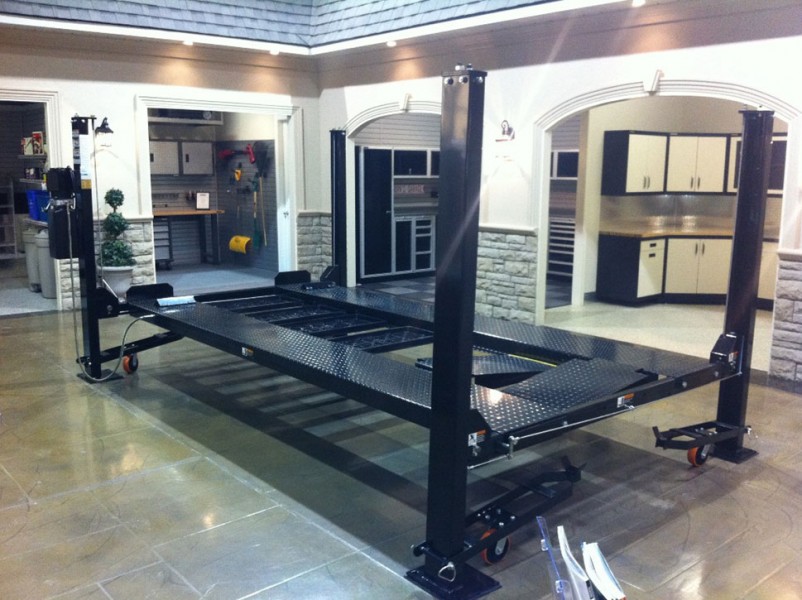

- Popular options such as drip trays, jack tray, and metal caster wheels with non-mar Poly surface are included

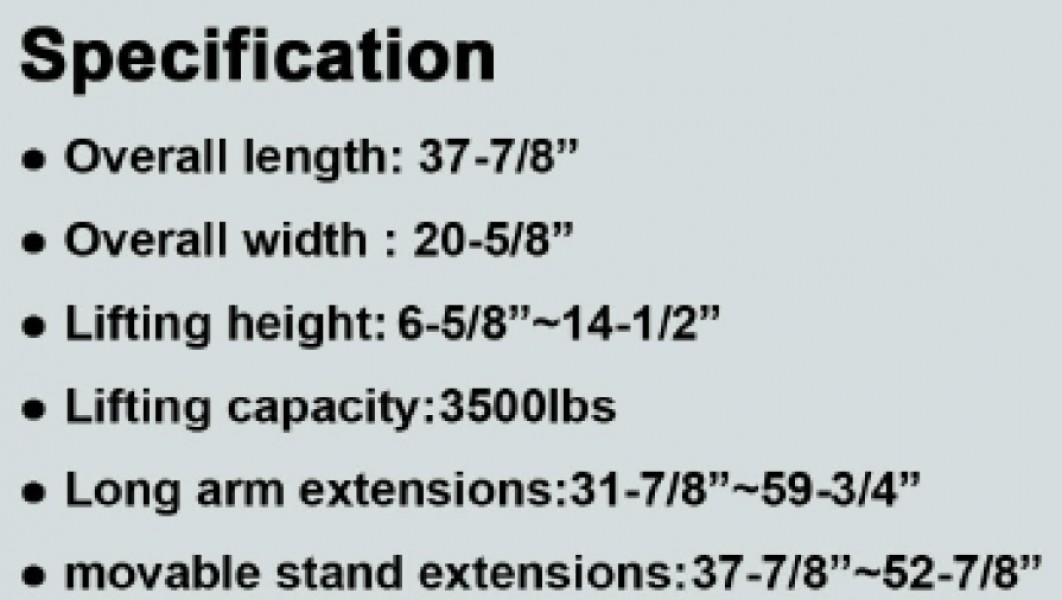

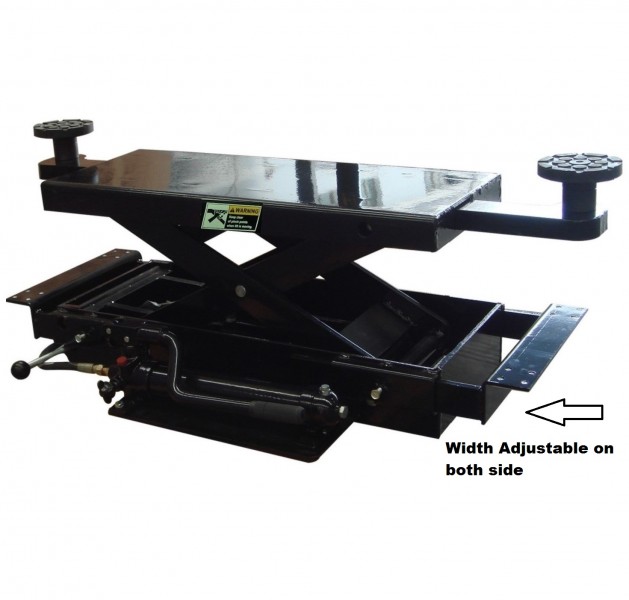

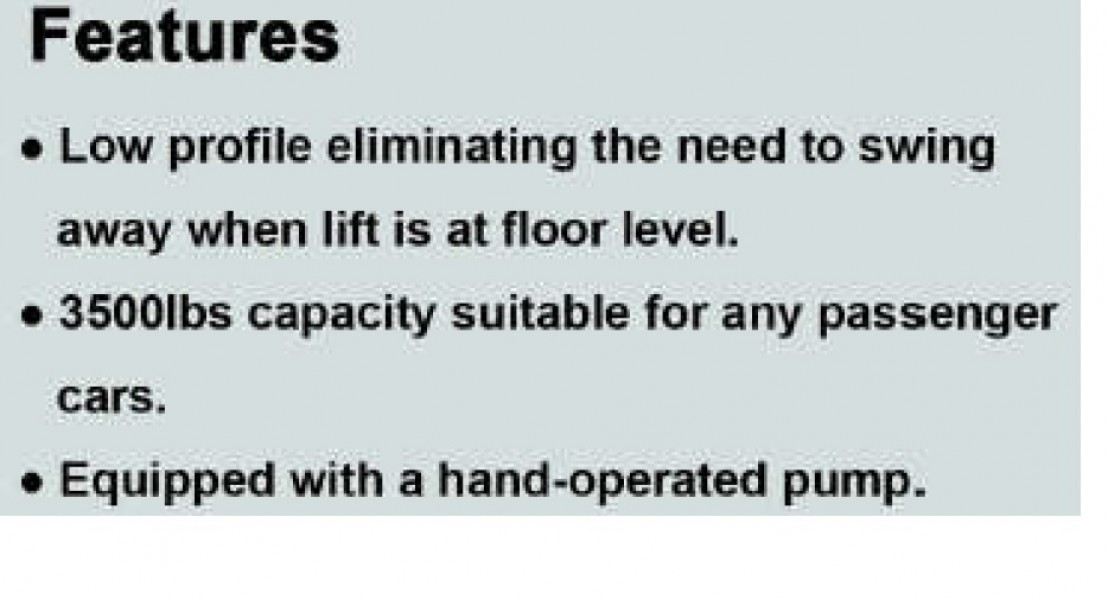

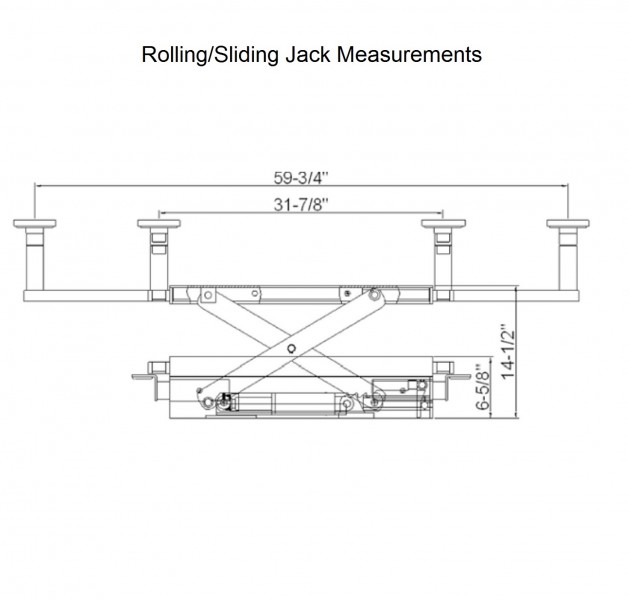

- Other options are available but NOT included ; aluminum ramps & Sliding Hydraulic Lifting Jack(s) with 3,500lbs capacity
-
Click on the MAP below to find us on GOOGLE MAPS

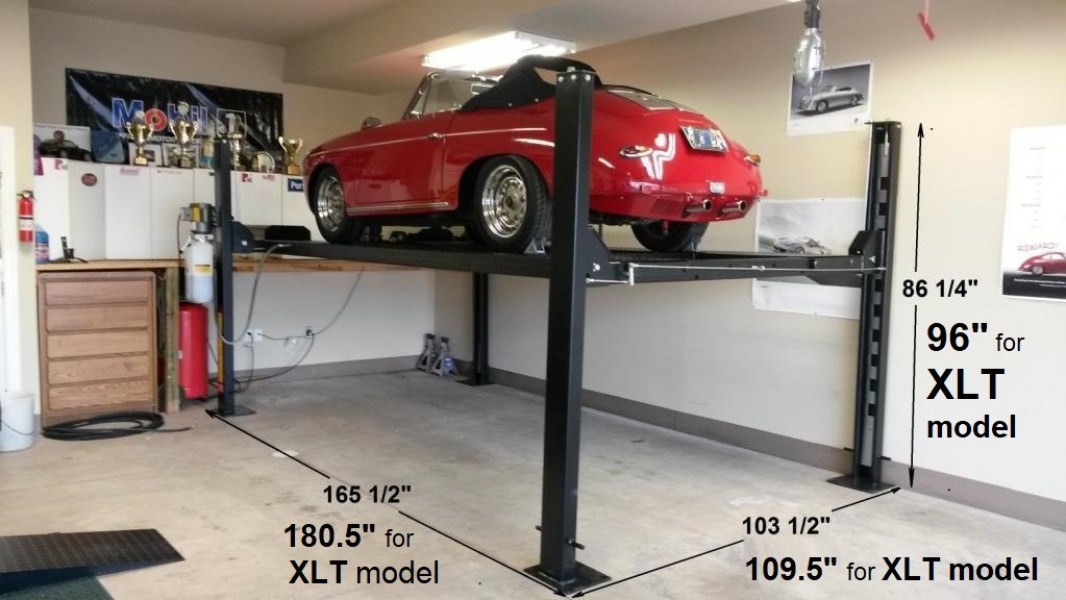

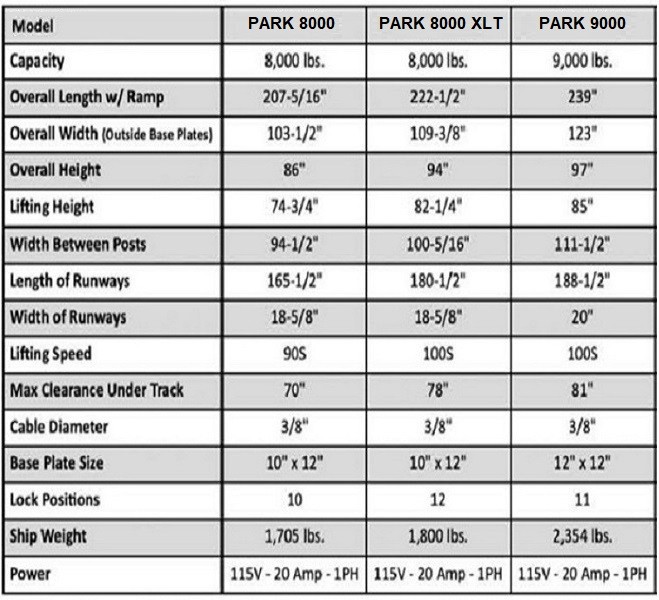

| Specifications; | HOLLSTEIN PARK8000 | HOLLSTEIN PARK8000XLT |
| Capacity | 8,000 lbs. | 8,000 lbs. |

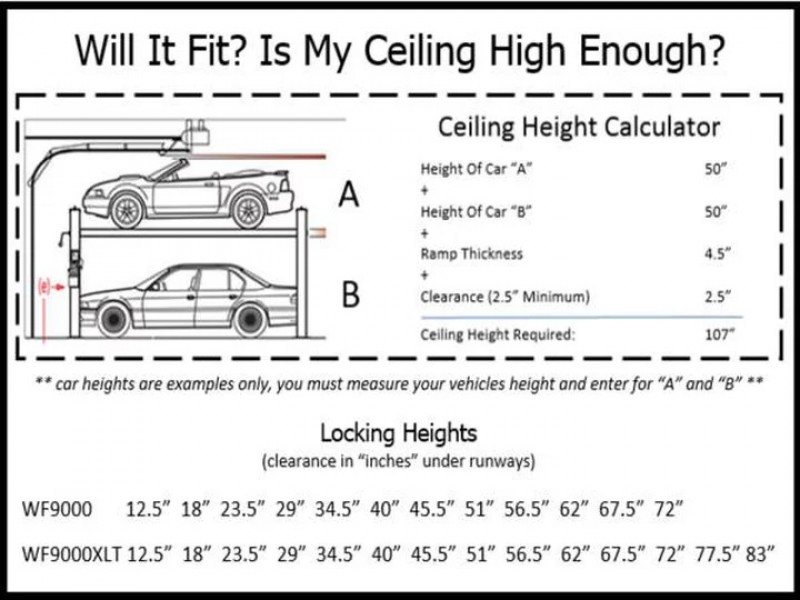

| Lifting Height | 74.8" | 82.3" |
| Overall Length with Ramp | 207.3" | 222.5" |
| Overall Length without Ramp | 175.5" | 190.7" |
| Overall Width | 103.5" | 109.4" |
| Runway Tread Width | 18.7" | 18.7" |
| Runway Length | 165.5" | 180.5" |
| Runway Height | 4.3" | same |
| Column Height | 86" | 94" |
| Clearance Between Columns | 94.5" | 100.3" |
| Clearance between Runways | 37" | 42.2" |
| Outside Runway to Outside Runway | 74.8" | 80.7" |

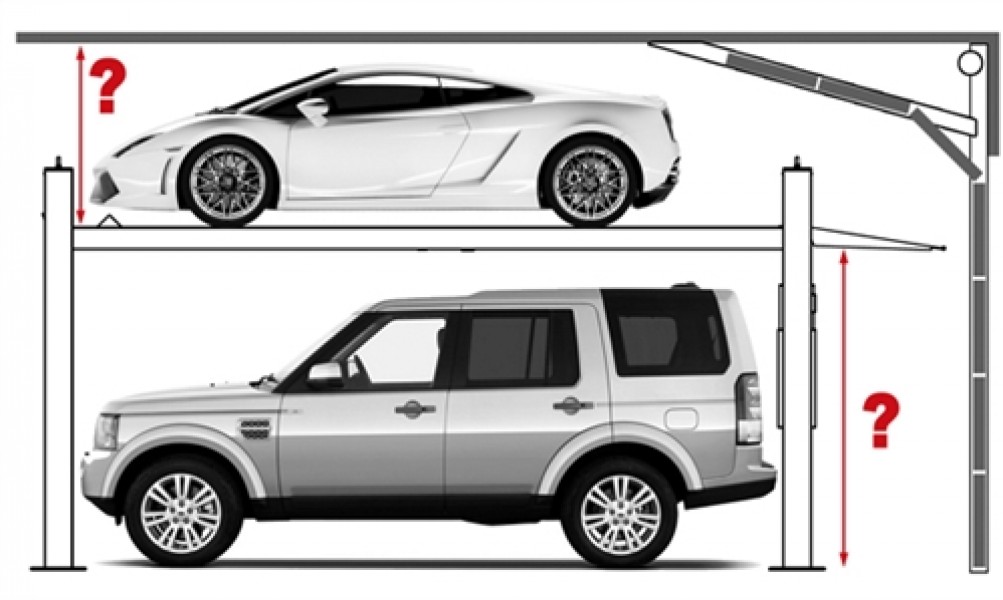

| Clearance Under Runways | 70" | 78" |
| Drive Thru Width | 80" | 87.2" |
| Locking Positions | 10 | same |
| Base Plate Size | 10” x 12" | same |
| Power | 110V Single Phase-15 Amp | same |
| Ship Weight | 1,560 lbs | 1,805 lbs |
| Package Dimension L x W x H | 14' x 21" x 28" | 15' - 6" x 21" x 28" |
