Shown: F12N301BL
Capacity: 12,000 lbs.
Capacity: 12,000 lbs.
Standard lift colors include blue and red.

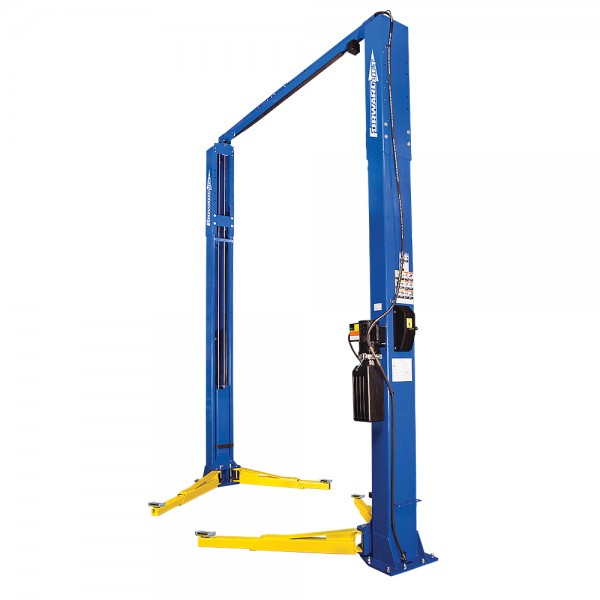

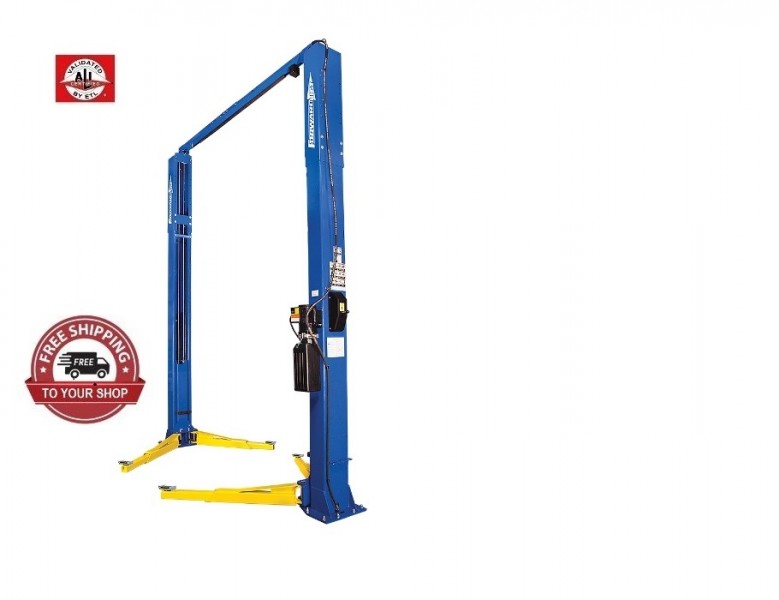

Forward F12 Two Post Lift
Forward F12 Two Post Lift with four 2 stage symmetrical arms

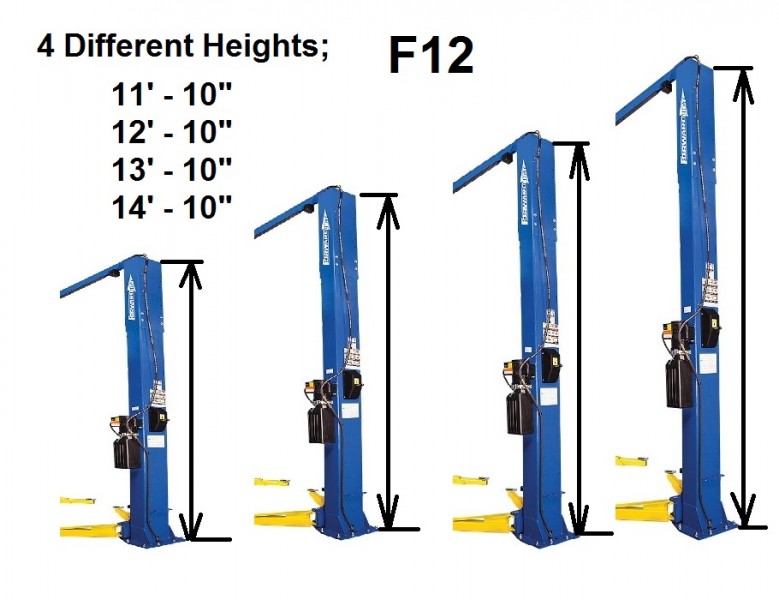

The F12 and i12 PRO lifts from Forward are available at 4 different ceiling height variations at no additional cost
- 11'-11" (143")
- 12'-10" (154")
- 13'-10" (166")
- 14'-10" (178")
Forward's F12 two post lift is gold certified with a 12,000 pound capacity for raising mostly trucks, vans and some passenger cars. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forwards spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak.
Additional Features:
- Hydraulic cylinders in each column
- Full Stroke
- Cylinder rod concealed inside carriage
- 72-1/2" Rise | 77-1/2" Rise (With 5" adapter extensions)
- 2 Stage Arm Design
- Overhead cable equalization
- Single Point lock release

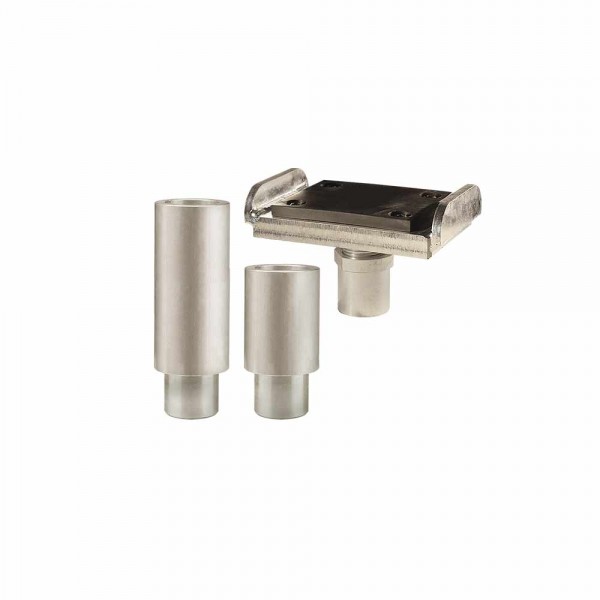

- Large rubber-padded swivel adapter with extra height extensions (3.5" and 5") are standard
- Spring operated arm restraints, disengage at floor level

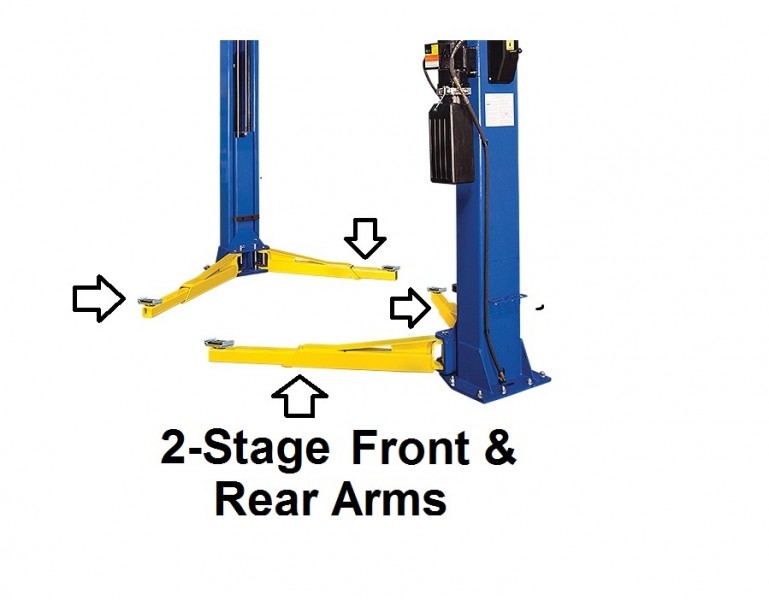

- 2-stage front and rear arms
- Durable powder coat finish
- Standard color of lift is blue with yellow arms.
